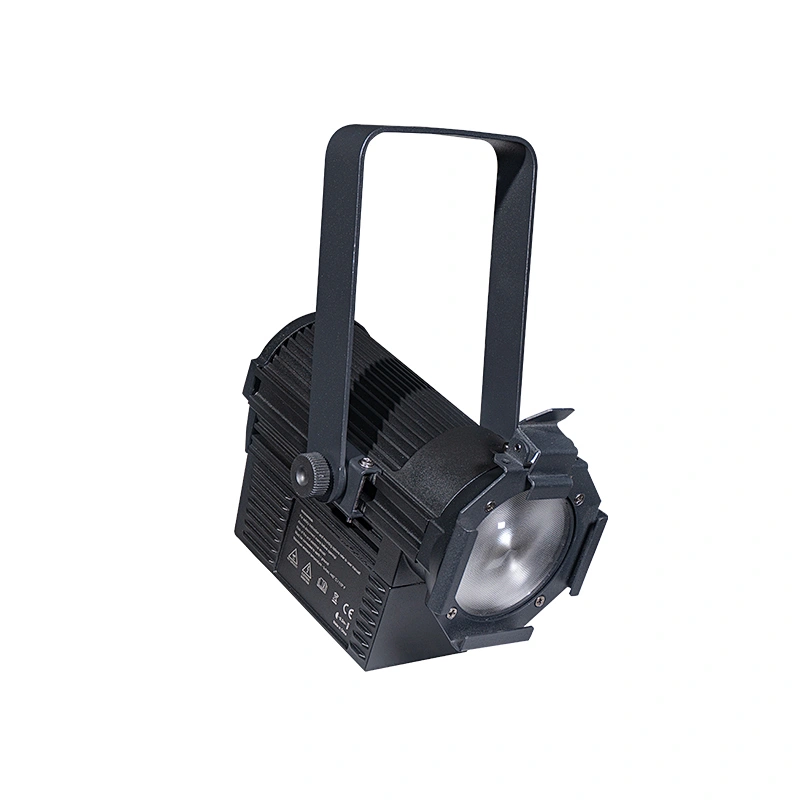

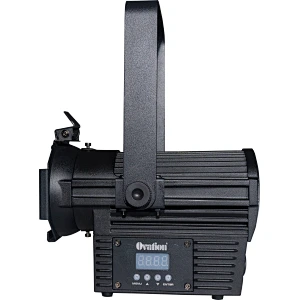

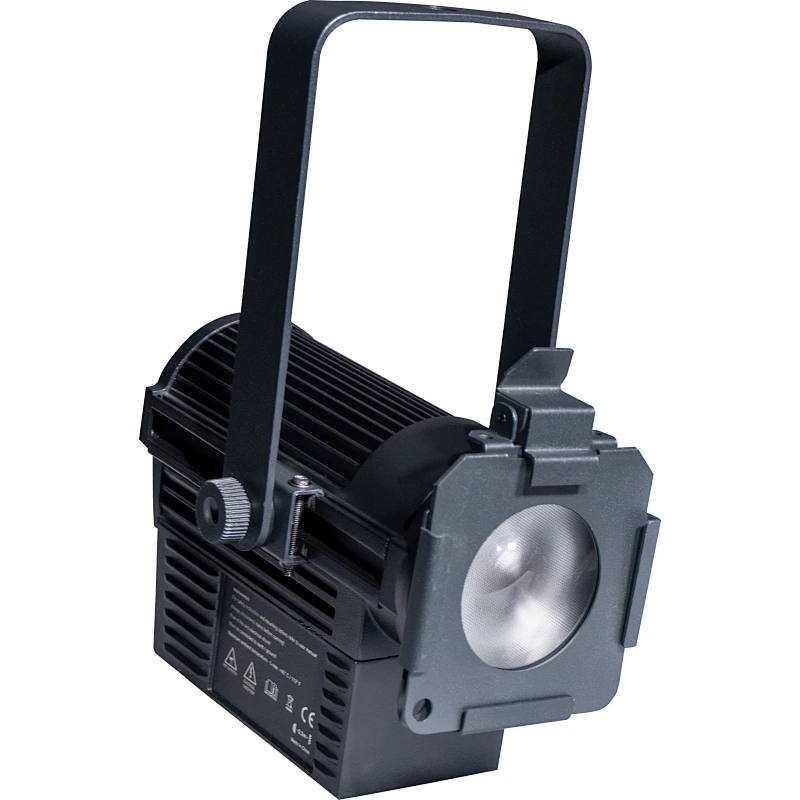

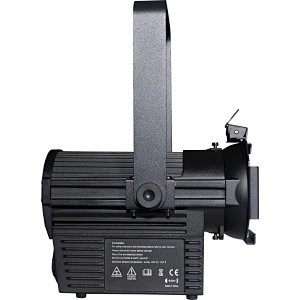

Panto 60 Fresnel

Panto Fresnel 60 is a 60W tunable COB LED fresnel. Die-casting housing, fanfree design. Color temperature adjustable from 2700K - 6000K. It's an idea  product for art gallery, museum, shoping mall.

KEY FEATURES

• 60W warm white + 60W cool white

• 2700K ~ 6000K tunable

• CRI 92

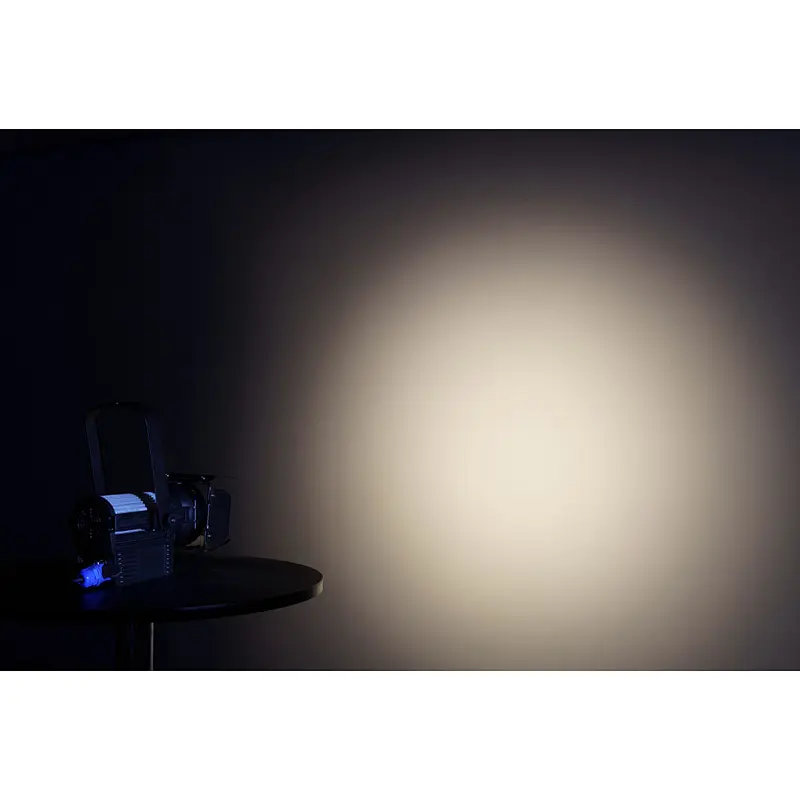

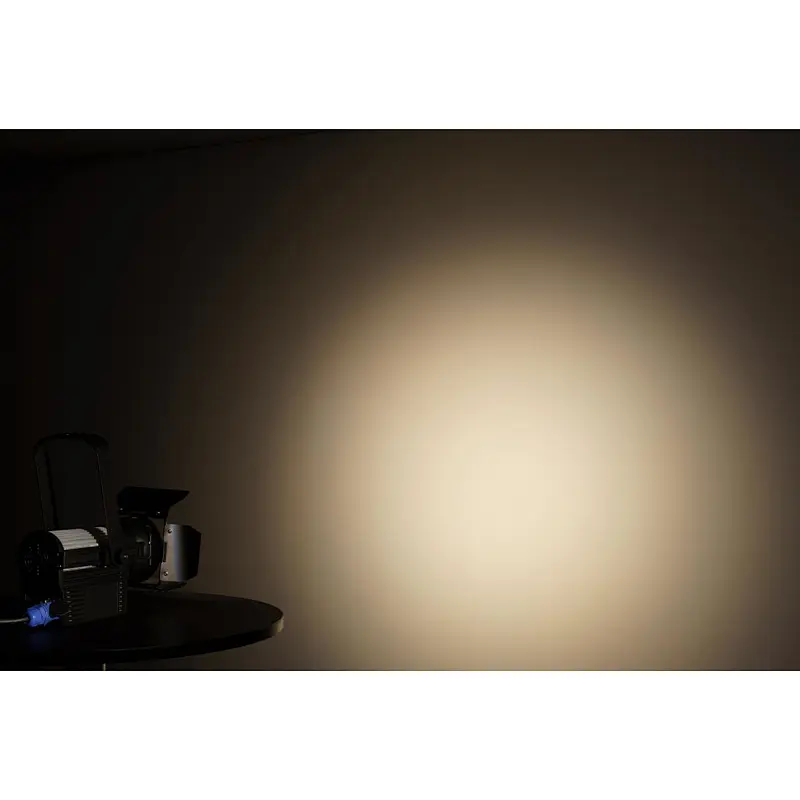

• 90° wide range wash

• Smooth dimming, flicker free

• Super compact, easy for set up

• RDM function available

•Die-casting aluminum housing, fan-free

• DMX control of dimmer

APPLICATION

• Museum

• Theatre

•Chruch

• Shoping mall

• Art gallery

• Restaurant

PHYSICAL

Size: 290 x 163 x 276mm

Net Weight: 2.7 kg

Gross Weight: 3.5 kg

CONTROL AND PROGRAMMING

Control protocol: DMX, RDM

DMX channels: 1/2/3/5 CH

OPTICS

Light source: 60W WW + 60W CW

Color temperature: 2700K~6000K tunable

90° wide range wash

LED lifetime: 50,000 hours

CONSTRUCTION

Housing: Aluminum

Color: Black

Protection rating: IP65

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

CONNECTIONS

AC power in, thru: IP rate power cable in

DMX and RDM data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power cable
User manual
Color frame
Barndoor

ACCESSORIES OPTIONAL

Clamp

Safety rope
