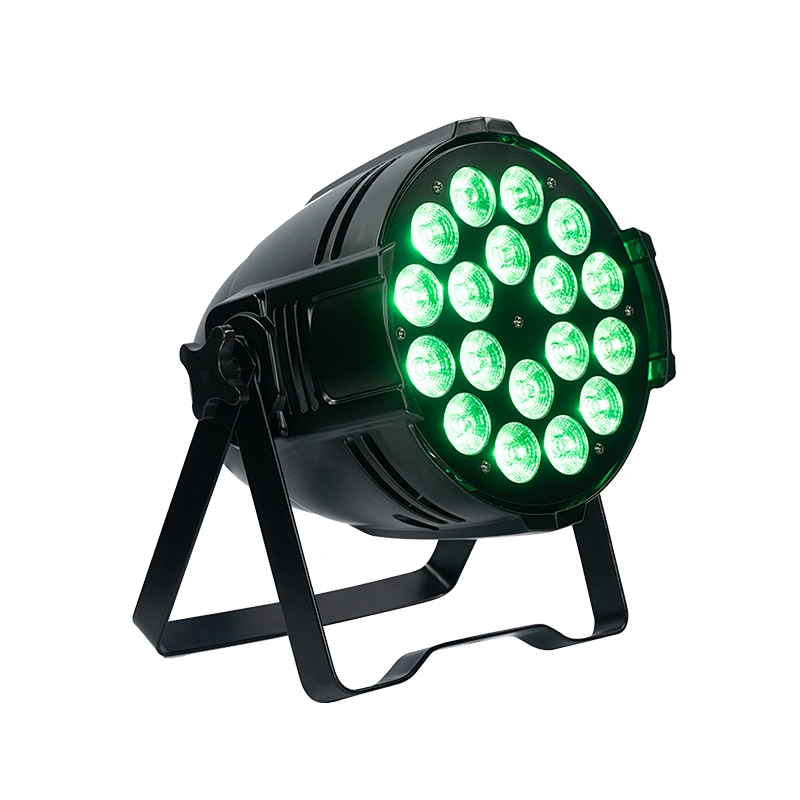

Pop Par 1018

Pop Par 1018 is a 18*10W RGBW/RGBWA/RGBWA+UV par light to replace the traditional lamp par. Featuring beam angle 25°, durable LED life, compact design, flat and even field of light.

KEY FEATURES

• 18 x 10W LED

• RGBW/RGBWA/RGBWA+UV color mixing

• Video flcker free

• Master-slave operation

• Aluminum housing

APPLICATION

• Theatre, chruch

• Stage wash

• Wedding

• Exhibition lighting

PHYSICAL

Size: 280 x 215x 310 mm

Net Weight: 2.3 kg

Gross Weight: 2.7 kg

CONTROL AND PROGRAMMING

Control protocol: DMX

DMX compliance: USITT DMX512-A

OPTICS

Light source: 18*10W RGBW/RGBWA/RGBWA+UV LED

Beam angle: 25°

LED lifetime: 50,000 hours

CONSTRUCTION

Housing: Aluminum

Color: Black

Protection rating: IP20

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

CONNECTIONS

AC power in, thru: IP rate power cable in

DMX and RDM data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable
User manual

ACCESSORIES OPTIONAL

Clamp
