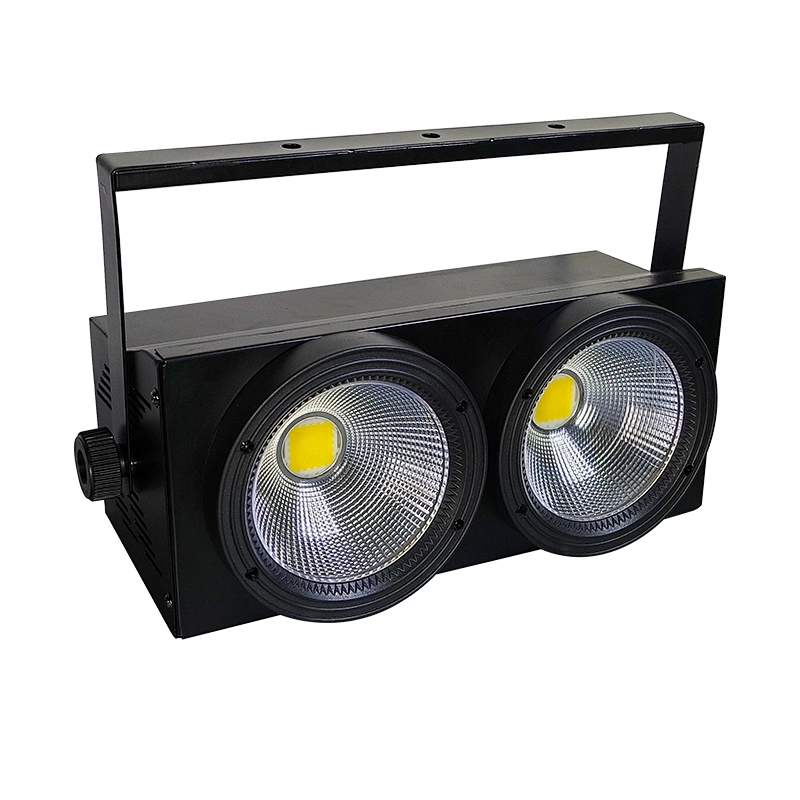

Blinder 200

Blinder 200 is a 2x100W led blinder light, available Individual control of each LED, have 3200K~5600K tunable, single white optional.

KEY FEATURES

• Color temperature 3200k/5600k/tunable optional

• Beam angle 45°

• LED angle: Reflective cup

• Electronic strobe, 0-30 times/second

• 0-100% smooth linear dimming, refresh frequency 20500Hz. Using stable constant current drive and power supply, suitable for video shooting

• High-efficiency optical system, the heat dissipation material of the lamp bead head is high heat dissipation, high density die-casting aluminum material,Each chip can carry 200W power cooling. The LED temperature protection function, silent fan, low noise

APPLICATION

• Stage wash

• Wedding

• Exhibition lighting

PHYSICAL

Size: 360x170x240MM

Package(carton): 470x250x250MM

N.W.: 3.5 kg

CONTROL AND PROGRAMMING

Control mode: Auto, Sound, Master-slave, DMX512

Control channels: 2/4/8CH

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

OPTICS

Light source: 2x 100W LED

Color temperature: 3200k/5600k/tunable optional

Beam angle: 45°

LED lifetime: 50,000 hours

CONSTRUCTION

Housing: Aluminum

Color: Black

Protection rating: IP20

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

CONNECTIONS

AC power in, thru: IP rate power cable in

DMX and RDM data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable
User manual

ACCESSORIES OPTIONAL

Clamp
