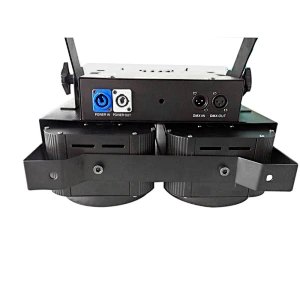

Blinder 400

Blinder 400 is a 4x100W led blinder light,  available Individual control of each LED, have 3200K-5600K tunable, single white optional.

KEY FEATURES

• 4 x 100W LED

• 3200K-5600K tunable, single white optional

• Beam angle: 60°

• Control channels: 2/6/12 CH

• Control mode: DMX 512

• Smooth dimming, flicker free

• Aluminum housing

APPLICATION

• Stage wash

• Wedding

• Exhibition lighting

PHYSICAL

Package(carton): 430 x 270 x 420mm

Net Weight: 8.5 kg

Gross Weight: 9.4 kg

CONTROL AND PROGRAMMING

Control protocol: DMX

DMX channels: 2/6/12 CH

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

OPTICS

Light source: 4 x 100W LED

Color temperature: 3200K-5600K tunable, single white optional

LED lifetime: 50,000 hours

CONSTRUCTION

Housing: Aluminum

Color: Black

Protection rating: IP20

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

CONNECTIONS

AC power in, thru: IP rate power cable in

DMX and RDM data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable
User manual

ACCESSORIES OPTIONAL

Clamp
