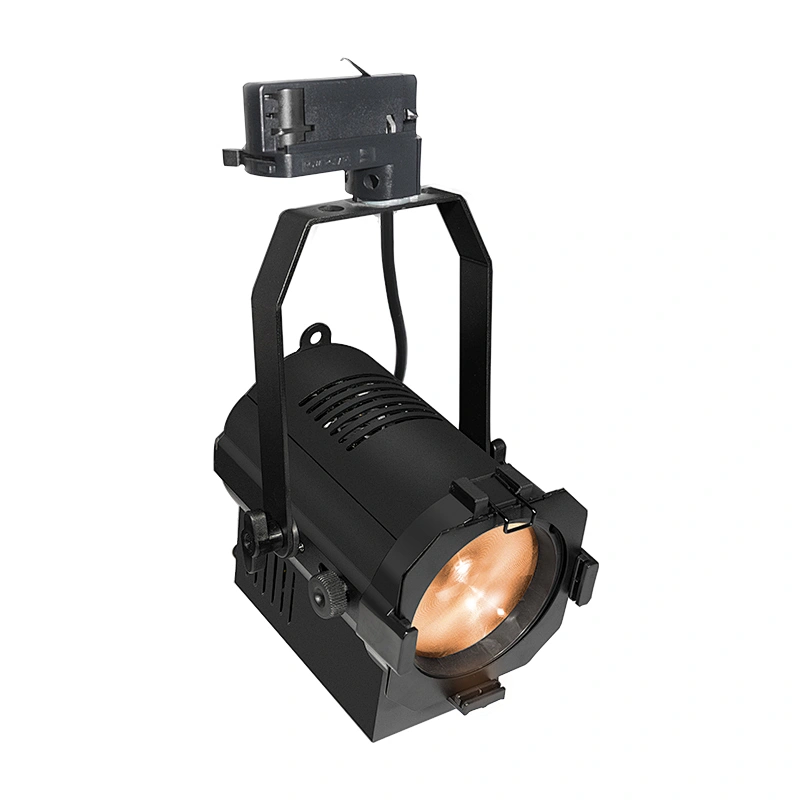

Space Mini Fresnel 50TZ

Space Mini Fresnel 50TZ is a portable 50W LED track fresnel light. powered by 50W warm white and 50W cold white tunable LED. 25° ~ 80° zoom, 95CRI, 90 R9, rotary control of dimmer. It deliver a smooth, soft flat field of light. Barn door included for the shape of the light.

KEY FEATURES

• 50W warm white + 50W cool white
• 2700K ~ 6500K tunable
• CRI 95, R9≥90, TLCI 98, CQS 96
• 25° - 80° manual zoom
• Smooth dimming, flicker free
• Super compact, easy for set up
• DMX-RDM compliant
• 4-leaf rotatable barndoor included

APPLICATION

• Museum
• Church
• Shoping mall
• Art gallery
• Restaurant

PHYSICAL

Size: 230 x 156 x 279 mm (L x W x H)
Net Weight: 2.2 kg

DYNAMIC EFFECTS

Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%, dimming curve selectable
Strobe effects

OPTICS

Light source: 50W WW + 50W CW
Color temperature: 2700K ~ 6500K tunable
Lens tube: 25° - 80° zoom lens
LED lifetime: 50,000 hours

PHOTOMETRIC DATA

CRI (Color Rendering Index) : >95

CONSTRUCTION

Housing: Aluminum
Color: Black
Protection rating: IP20

INSTALLATION

Mounting: Track
Location: Indoor use only
Orientation: Vertically hanging

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink( no noise)
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS
User manual
Color frame
Barn door

ACCESSORIES OPTIONAL

Gobo Holder
