Model NO.:
62501
Delivery:
EXW, FOB
Minimum order quantity:
1 piece
Supply Ability:
500 piece / Week
Country of Origin:
China
Stock Time:
7 Days
Reborn 200 is a LED retrofit for Source 4 profile. Upgrade your source 4 profile in just seconds. Features high CRI, bright output and low heat, energy save, clean and even light field, RDM function, long life LED, LCD display, XLR in & out, 100-240V worldwide voltage.
Quantity:

KEY FEATURES:

• 175W LED light source, equivalent of 575W lamp

• Color temperature: 5600K

• CRI 90+ (5600K)

• 3-pin XLR in & out signal connection(5 pin optional)

• Studio mode for super silent operation

• Wide voltage range 100-240V

• Dimmer frequency 1.2 - 20.0KHz

• Smooth dimming, video flicker free

• LCD display, user friendly interface

• Easy to setup, seconds to upgrade

• Intelligent temperature control, silent operation


APPLICATION:

• Broadcast, HD studio

• Theatre, chruch

• Fashion show

• Museum

• Exhibition lighting


PHYSICAL

Length: 195 mm (7.7 in.)

Width: 141 mm (5.6 in.)

Height: 186 mm (7.3 in.)

Net Weight: 3 kg (6.6 lb.)

DYNAMIC EFFECTS

Electronic dimming: 0 – 100%

CONTROL AND PROGRAMMING

Control options: DMX, RDM

DMX channels: 1

Dimmer frequency: 1.2 KHz, 1.6 KHz, 2.4 KHz, 4.0 KHz, 6.0 KHz, 20.0 KHz

DMX address setting: Control panel with LED display or via RDM

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

RDM function available for addressing and settings

OPTICS

Light source: 175W COB LED

Color temperature: 5600K(CW)

LED lifetime: 50,000 hours

PHOTOMETRIC DATA

5,600K 1390lux @5m 26°

CRI (Color Rendering Index) : >92( 5,600K)

TM-30 Rf (IES TM-30-15 Fidelity Index): >91(5,600K)

TM-30 Rg (IES TM-30-15 Gamut Index): >98(5,600K)

TLCI (Television Lighting Consistency Index): >95(5,600K)

For more information, please refer to the datasheet

CONSTRUCTION

Housing: Die-cast aluminum

Color: Black

Protection rating: IP20

INSTALLATION

Mounting: Adjustable bracket

Enviroment: IP20 indoor use

Orientation: Any

Minimum distance to combustible materials: 0.2 m (0.7 ft.)

Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

CONNECTIONS

AC power in/thru: Dedicated power in

DMX & RDM data in/thru: 3-Pin XLR in & out

ELECTRICAL

AC power: 100–240 V nominal, 50/60 Hz

Power supply unit: Auto ranging power unit

THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power cable

Fix bolt

Safety cable(optional)

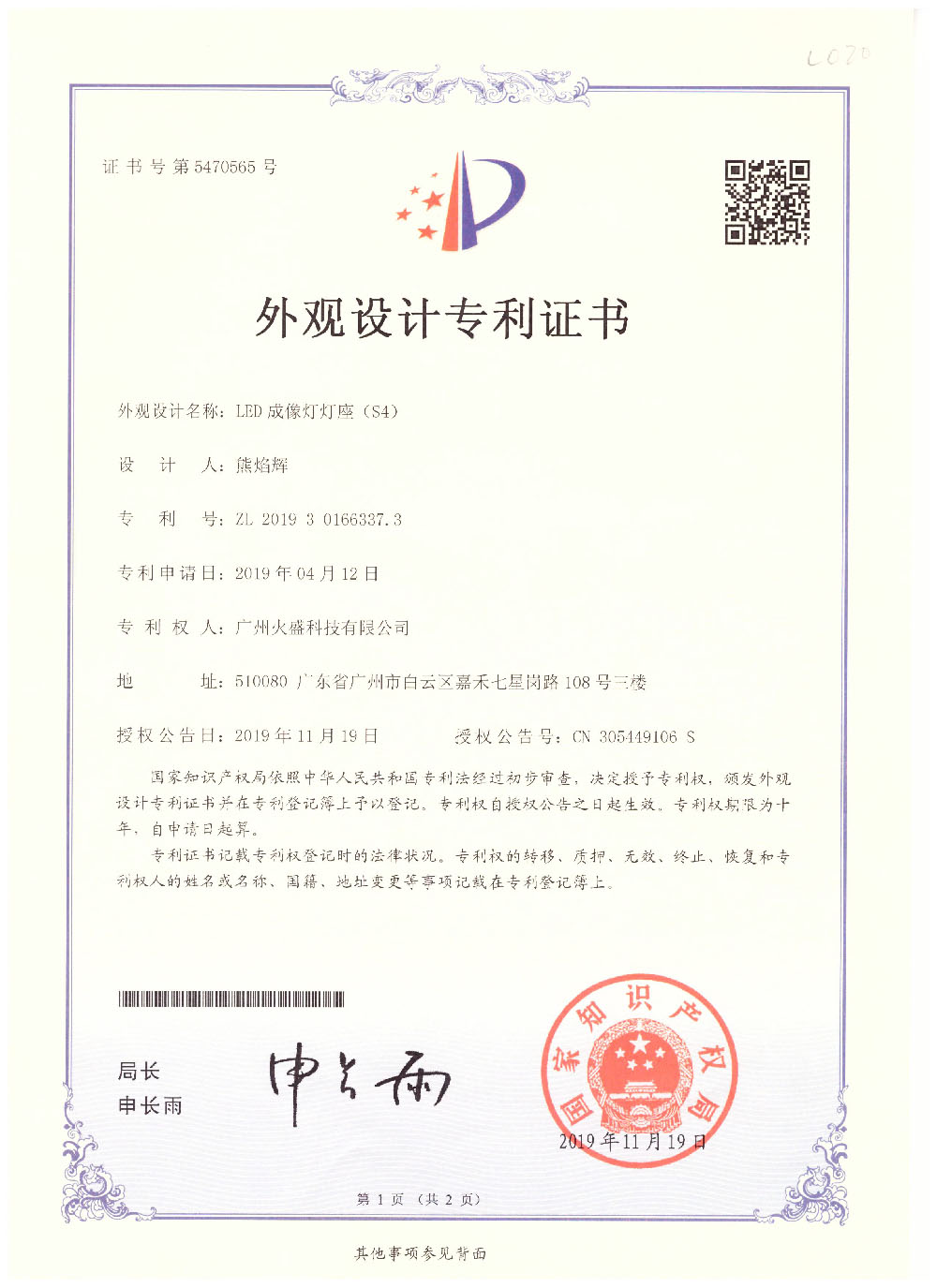

Patent

ZL 2019 3 0166337.3

PATENT

  • Input Voltage(V):AC100-240V, 50/60Hz
  • Lamp Power(W):175W
  • Lamp Luminous Flux(lm):7500
  • CRI (Ra>):90+
  • Color Temperature(CCT):Cool White
  • Working Lifetime(Hour):50000
  • IP Rating:Other
  • Certification:RoHS;ETL;CE
