Art-Net DMX AD8
Art-Net DMX AD8

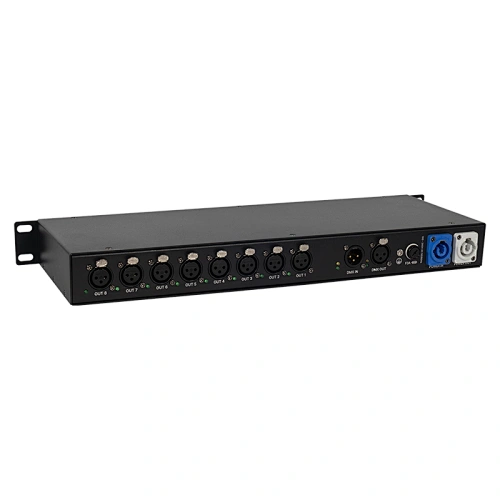

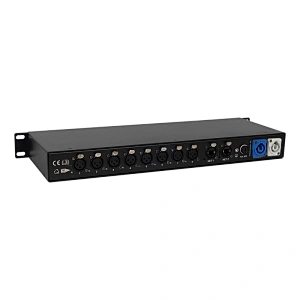

• Art-Net DMX AD8 is a reliable and versatile rack-mountable Art-Net to DMX adapter with an integrated optical DMX splitter, DMX booster and Art-Net hub capability.
• It has eight 3-pin DMX Out ports, all optically isolated. It takes up to 8 Art-Net universes simultaneously. The eight 3-pin DMX Out ports can be assigned to either
• of the DMX In ports or to one of the Art-Net PowerCon ports.
• It has eight 3-pin DMX Out ports, all optically isolated. It takes up to 8 Art-Net universes simultaneously. The eight 3-pin DMX Out ports can be assigned to either
• of the DMX In ports or to one of the Art-Net PowerCon ports.
Quantity:
• Art-Net DMX AD8 is a reliable and versatile rack-mountable Art-Net to DMX adapter with an integrated optical DMX splitter, DMX booster and Art-Net hub capability.
• It has eight 3-pin DMX Out ports, all optically isolated. It takes up to 8 Art-Net universes simultaneously. The eight 3-pin DMX Out ports can be assigned to either
• of the DMX In ports or to one of the Art-Net PowerCon ports.
Key features:
• Distributes Art-Net data to 8 DMX512 universes (4096 channels)
• 8 optically isolated XLR plugs (3-pin) for DMX output
• Variable data routing capabilities for all DMX outputs
• Serial connection possible
• User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
• LED indication for functions
• DMX Splitter / DMX booster operation possible
Technical Data
Power supply: AC100V-240V 50HZ／60HZ
Power connection: PowerCon in & out
Power consumption: 5W
DMX512 outputs: 8 x 3-pin XLR male
Ethernet: 2 x RJ45, 100 Mbps
Protocol: Art-Net 4, UDP, TCP, ICMP, DHCP
Housing: Colour black, Steel
Size: 450mm x 16mm x 50mm
N.W.: 2.5kg
IP rating: IP20
