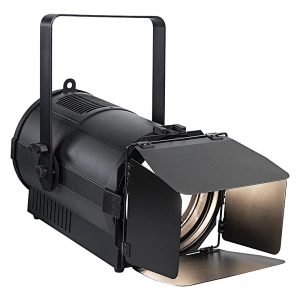

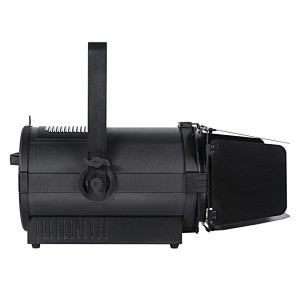

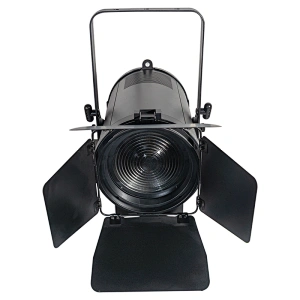

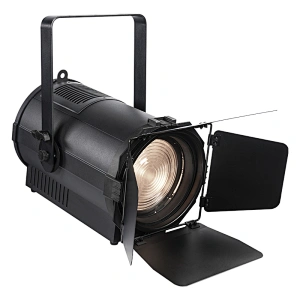

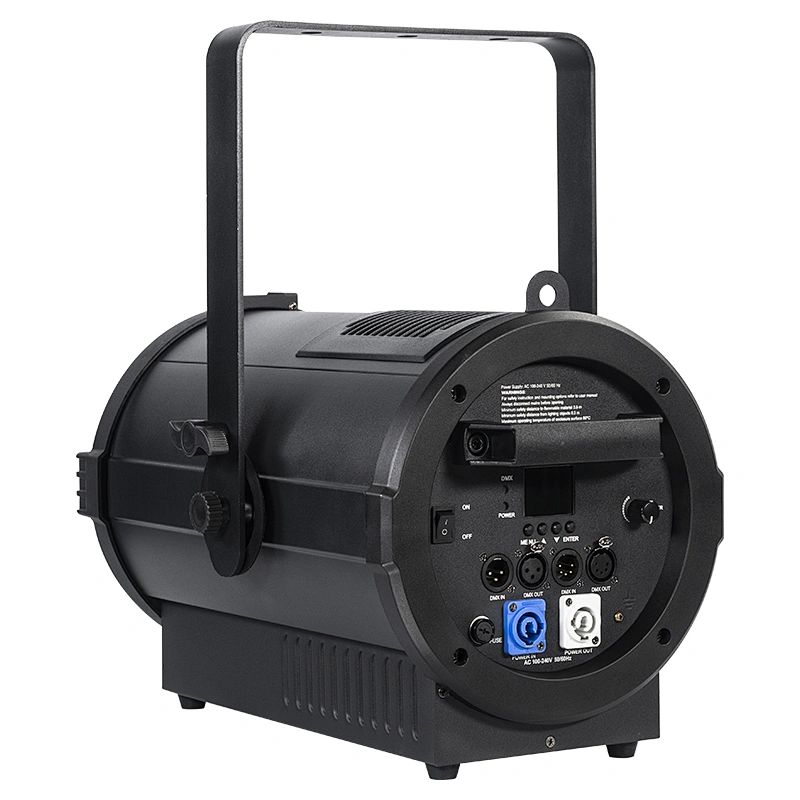

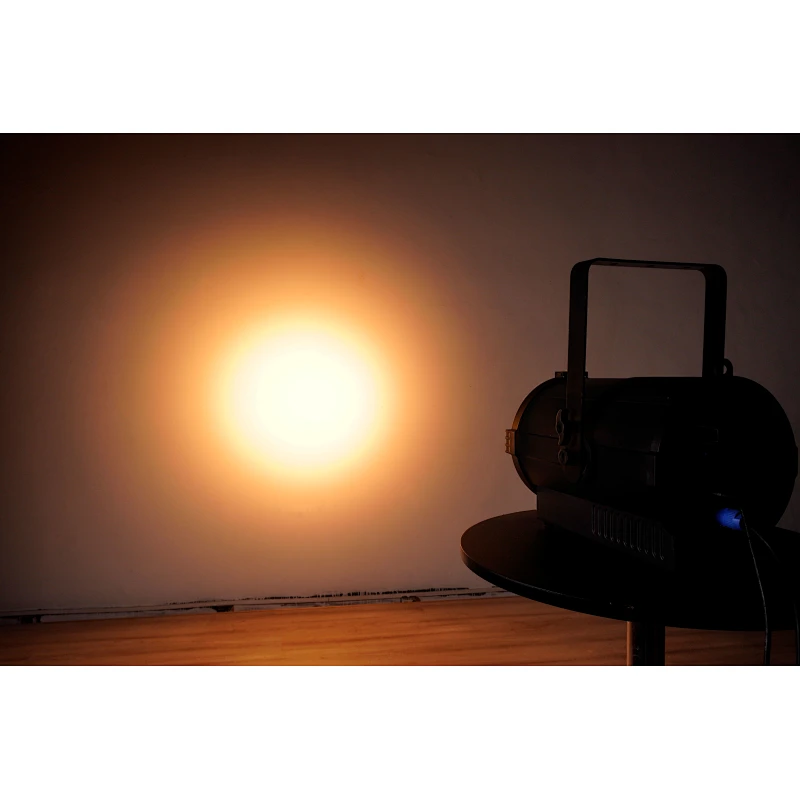

CTC 300 Fresnel
• 300W warm + 300W cold white LED
• 2800K - 6500K tunable
• 1 KW tungsten equivalent
• Average CRI 98, TLCI 98
• RDM, DMX control
• 4 dimmer curves selectable
• 8°-60° motorized zoom
• 16 bit dimming
• Flicker free with selectable PWM
• Rotary, key, DMX control of dimmer and zoom
• Silent operation for studio and theater use
Product Specifications
CTC 300 Fresnel Physical
Size: 460 x 320 x 440mm (L x W x H)
Net Weight: 11 kg(barn door incl.)
Gross Weight: 13 kg
CTC 300 Fresnel Dynamic Effects
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%, dimming curve selectable
Strobe effects
CTC 300 Fresnel Control and Programming
Control protocol: DMX, RDM
Setting and addressing: Control panel with LCD display
DMX channels: 3/6
Dimmer frequency: 1.2 - 24.0KHz
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
CTC 300 Fresnel Optics
Light source: 300W WW + 300W CW
Color temperature: 2800K- 6500K adjustable
Lens tube: 8° - 60° motorized zoom
LED lifetime: 50,000 hours
CTC 300 Fresnel Photometric Data
CRI (Color Rendering Index) : >97
CQS (Color Quality Scale): >94
TM-30 Rf (IES TM-30-15 Fidelity Index): >91
TM-30 Rg (IES TM-30-15 Gamut Index): >100
TLCI (Television Lighting Consistency Index): >98
CTC 300 Fresnel Construction
Housing: Aluminum
Color: Black
Protection rating: IP20
CTC 300 Fresnel Installation
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
CTC 300 Fresnel Connections
AC power in, thru: PowerCON in & out
DMX and RDM data in/out: 3-pin + 5-pin XLR in & out
CTC 300 Fresnel Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
CTC 300 Fresnel Thermal
Cooling: Heat sink + Intelligent fan(low noise)
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -5° C
CTC 300 Fresnel Included Items
Power input cable
Barndoor
Color frame
Safety cable
User manual
CTC 300 Fresnel Accessories Optional
Clamp
