CTC 300 Profile
Key features
• 300W tunable white LED
• 300W WW+300W CW, 2700K~700K adjustable
• High CRI of 97, R9≥97
• HD optical system, clean shutter cuts beam
• 18°-38° "all-in-one" zoom range
• 16 bit dimming via DMX
• Video flicker free
• Rotary, key, DMX, RDM control of dimmer
• Intelligent temperature control, silent operation for studio and theater use
CTC 300 Profile equipped with a 600W LED (300W WW+300W CW constant output). 2700K - 7000K color temperature adjustable. A good replacement of the tungsten source. The 18° - 38° all-in-one zoom range covers the most regular 19°, 26°, 36° lens.
Product Specifications
CTC 300 Profile Physical
Size: 745 x 294 x 294mm (L x W x H)
Net Weight: 8.7 kg
Gross Weight: 11.5 kg
CTC 300 Profile Dynamic Effects
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%, dimming curve selectable
Strobe effects
CTC 300 Profile Control and Programming
Control protocol: DMX, RDM
Setting and addressing: Control panel with LCD display
DMX channels: 2/5
Dimmer frequency: 1.2 - 24.0KHz
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
CTC 300 Profile Optics
Light source: 300Watt tunable LED
Color temperature: 2700K- 7000K adjustable
Lens tube: 18° - 38° zoom lens
LED lifetime: 50,000 hours
CTC 300 Profile Photometric Data
CRI (Color Rendering Index) : >97
CQS (Color Quality Scale): >94
TM-30 Rf (IES TM-30-15 Fidelity Index): >91
TM-30 Rg (IES TM-30-15 Gamut Index): >100
TLCI (Television Lighting Consistency Index): >98
CTC 300 Profile Construction
Housing: Engineering plastic
Color: Black
Protection rating: IP20
CTC 300 Profile Gobos and color frame
Gobo size : support D size gobo, 53 mm OD, 40 mm image area
CTC 300 Profile Installation
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any

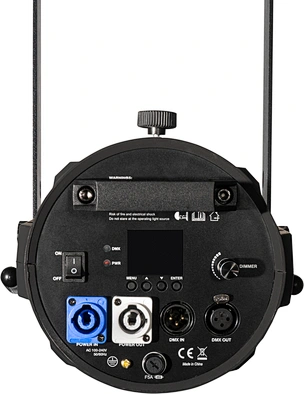

CTC 300 Profile Connections
AC power in, thru: PowerCON in & out
DMX and RDM data in/out: 3-pin locking XLR
CTC 300 Profile Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
CTC 300 Profile Thermal
Cooling: Heat sink + Intelligent fan(low noise)
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -5° C
CTC 300 Profile Included Items
Power input cable
Safety cable
User manual
Color frame
CTC 300 Profile Accessories Optional
Gobo Holder
Iris
Frequently Asked Questions
Question 1: Is it compatible with ETC Source Four lens?
Answer 1: Yes it is compatible.
Question 2: Can you make 5-pin DMX?
Answer 2: Yes, 5-pin DMX is possible.
Question 3: Do you have fixed lens version?
Answer 3: Yes, we do have fixed lens verison - Profile S300T.
