EXT 1218

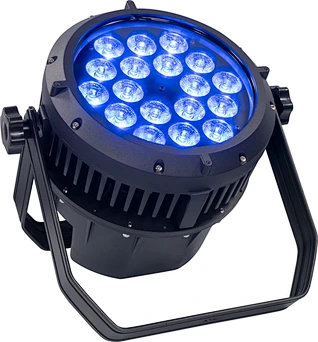

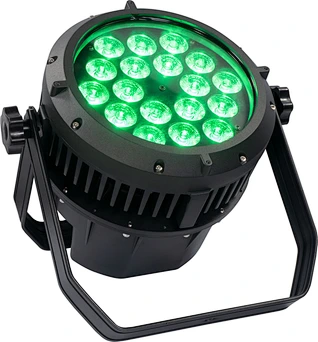

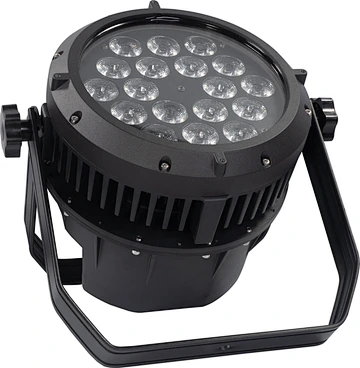

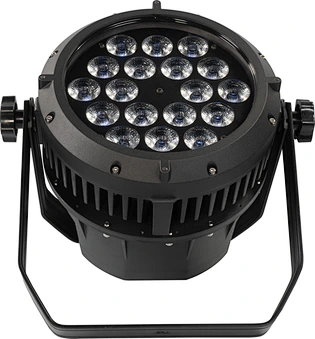

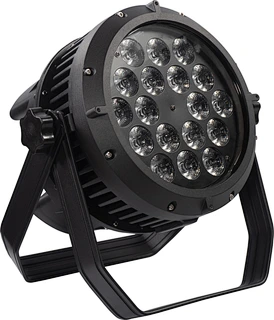

The EXT 1218 is a 18x12W RGBW 4-in-1 LED par light. It features full aluminum housing, high brightness, IP65 rated outdoor use.

KEY FEATURES:

• 18x12W LEDs
• RGBW quad color
• Master-slave operation
• Aluminum housing
•  Overheat protection
• Built-in color marcos
• Flicker free for TV and Film
• IP65 rated, outdoor use

APPLICATION:

• Stage
• Concerts
• Night club
• Wedding
• Events

PHYSICAL

Size: 270 x 145 x 300mm(10.6 x 5.7 x 11.8in)

Net Weight: 4.5kg(9.9lb)

CONTROL AND PROGRAMMING

Control protocol: DMX 512, Auto programs, Master-slave

DMX channels: 8

DMX compliance: USITT DMX512-A

OPTICS

Light source: 18x12W LEDs

LED lifetime: 50,000 hours

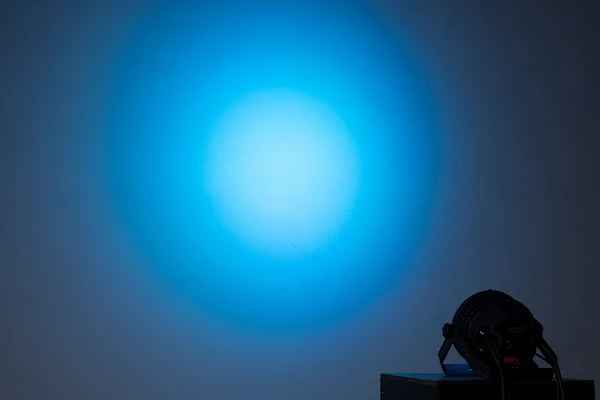

Beam angle : 25°

CONSTRUCTION

Housing: Aluminum

Color: Black

Protection rating: IP20

INSTALLATION

Orientation: Any

Location: Indoor and outdoor use

Orientation: Any

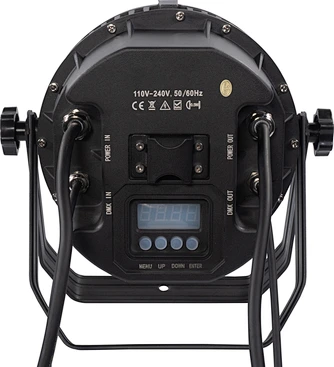

CONNECTIONS

IP rated power cable

IP rated dataconnector

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Forced air

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable
User manual
