Model NO.
73001
Hero 300 Performance is a 300W LED hybrid moving head with spot, wash, animation effect. Featuring RDM DMX control, 2 gobowheels, 1 animation wheel, 1 color wheel, prism, motorized focus, zoom and frost effect, as well as various dynamic effects.
Quantity:

KEY FEATURES:

• 300W super brightness LED

• Spot, Wash Animation effect all-in-one

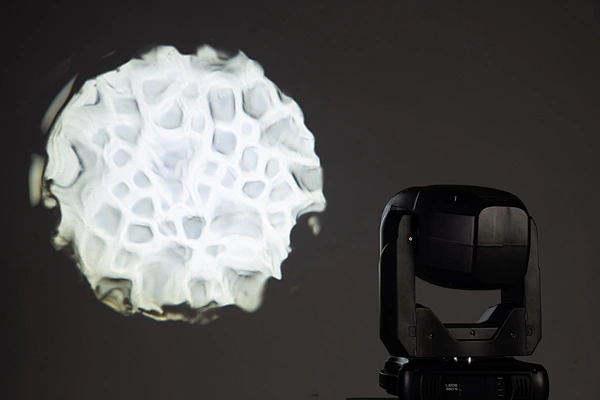

• 1 Animation wheel with continuous bi-directional rotation

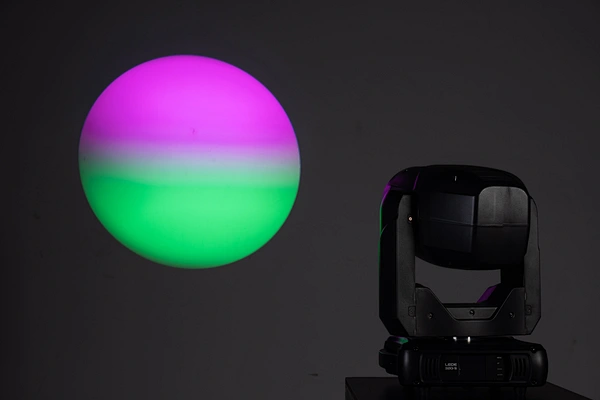

• 1 Color wheel with 7 colors+open

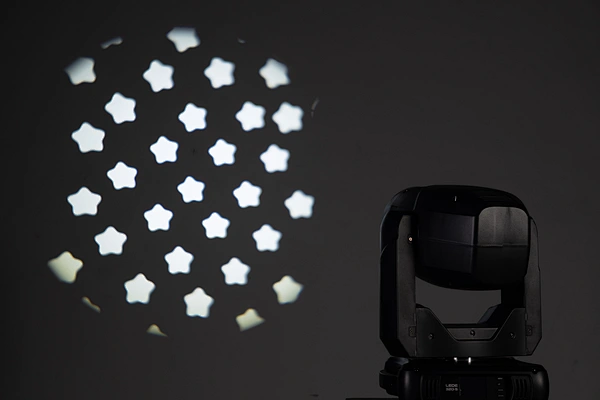

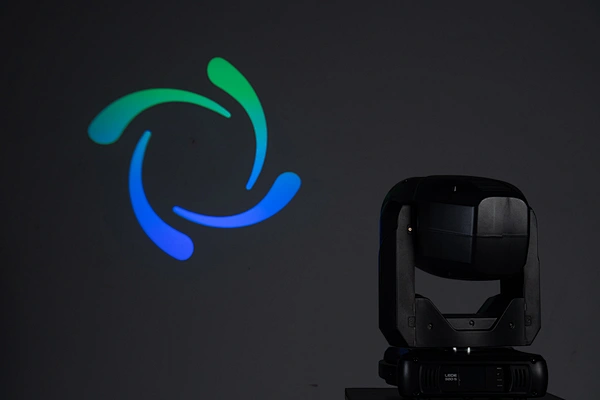

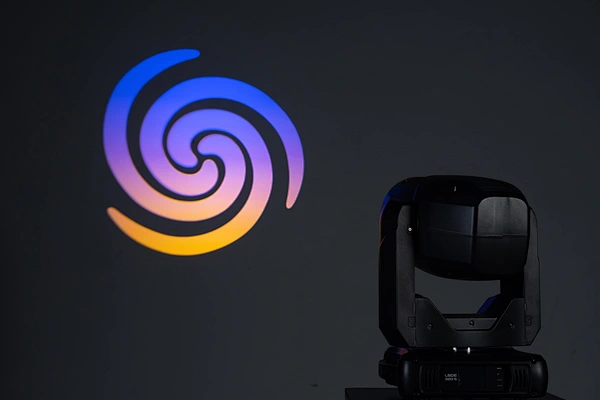

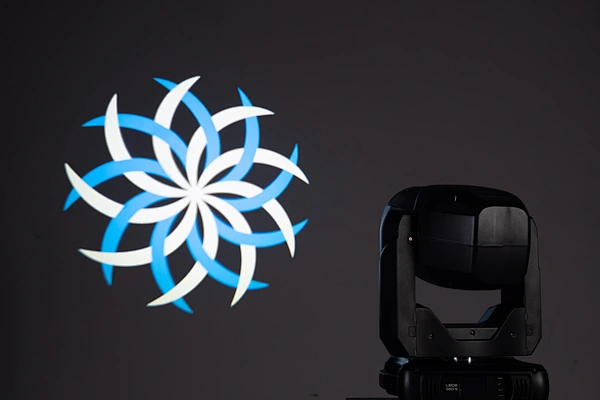

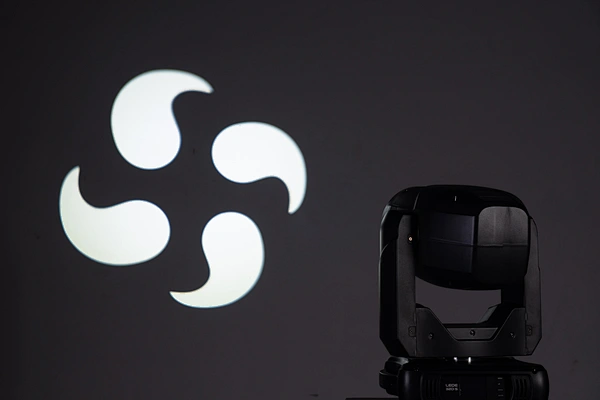

• 1 Gobo wheel with 8 fixed gobo+open

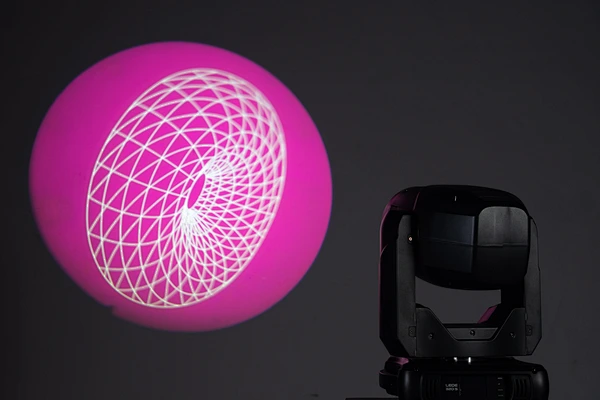

• 1 Gobo wheel with 7 rotating gobo+open

• Focus, Zoom, Frost, Dynamic effect

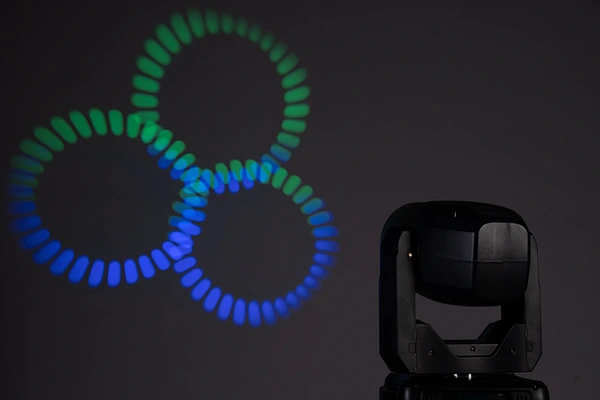

• 3-facet prism

• RDM-DMX control


APPLICATION:

• Concerts

• Night clubs

• Large venues

• Big stages and events


PHYSICAL

Size: 370 x 285 x 605 mm (L x W x H)

Net Weight: 18.6 kg

DYNAMIC EFFECTS

Electronic shutter effect: Instant open and blackout

Electronic dimming: 0 - 100%, dimming curve selectable

Strobe effects

CONTROL AND PROGRAMMING

Control protocol: DMX, RDM, stand-alone

Setting and addressing: Control panel with LCD display

DMX channels: 20/25

Dimmer frequency: 1.2 - 20.0KHz

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

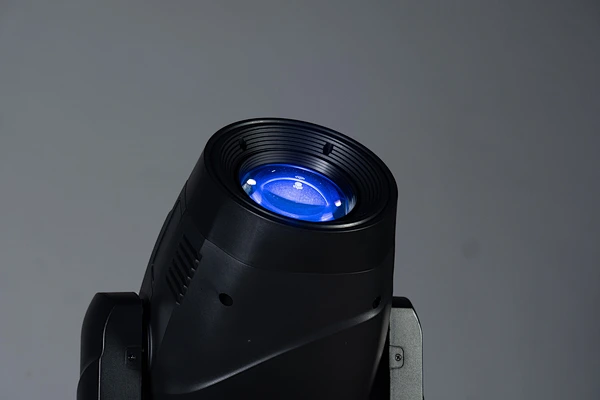

OPTICS

Light source: 300Watt white LED

Color temperature: 6600K

Zoom range: 13°-44° motorized

LED lifetime: 50,000 hours

CONSTRUCTION

Housing: Engineering plastic

Color: Black

Protection rating: IP20

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

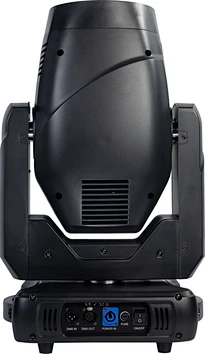

CONNECTIONS

AC power in, thru: PowerCON in

DMX data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable

Bracket
User manual

OPTIONAL ITEMS

Clamp
