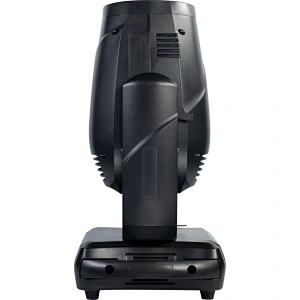

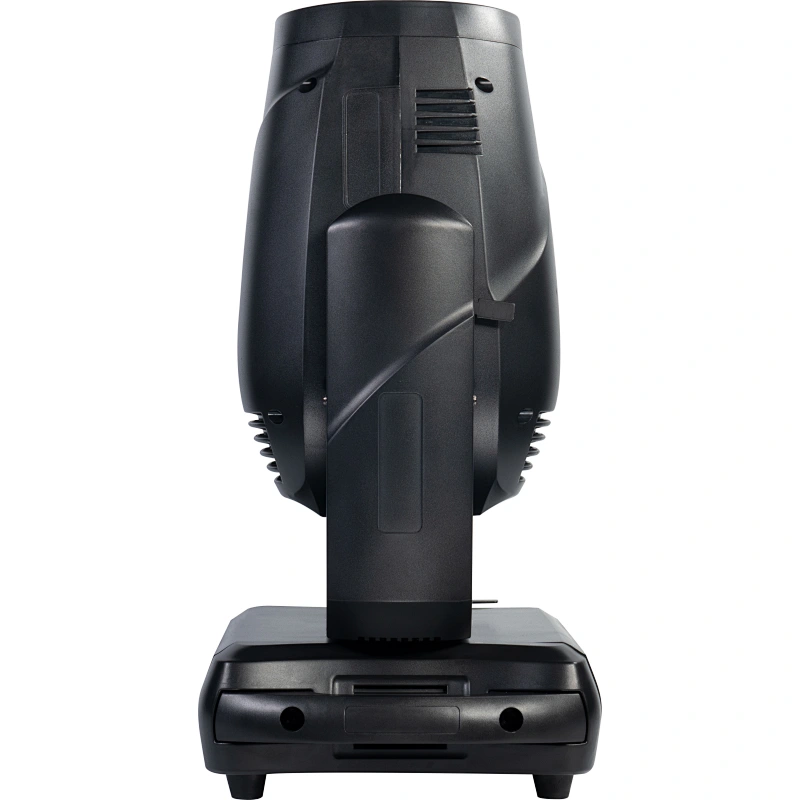

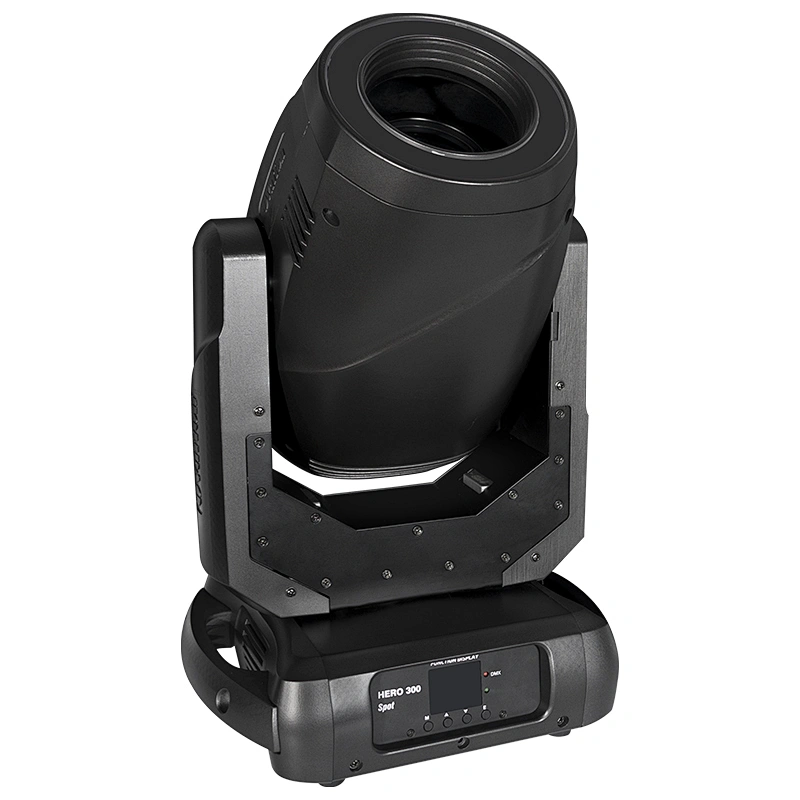

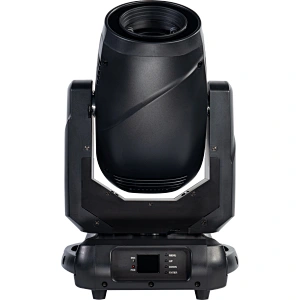

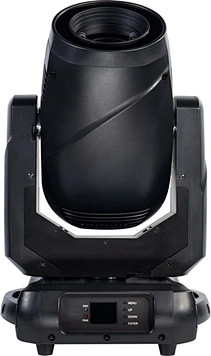

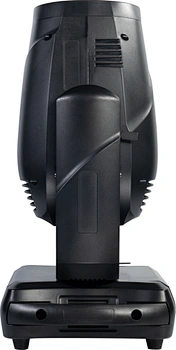

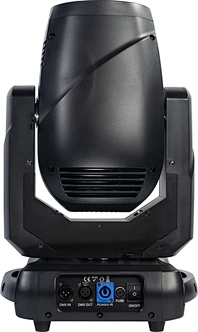

Hero 300 Spot

KEY FEATURES:

• 200W super brightness LED

• Spot effect

• 7~20 degree motorzied zoom

• 1 Color wheel with 9 colors+open

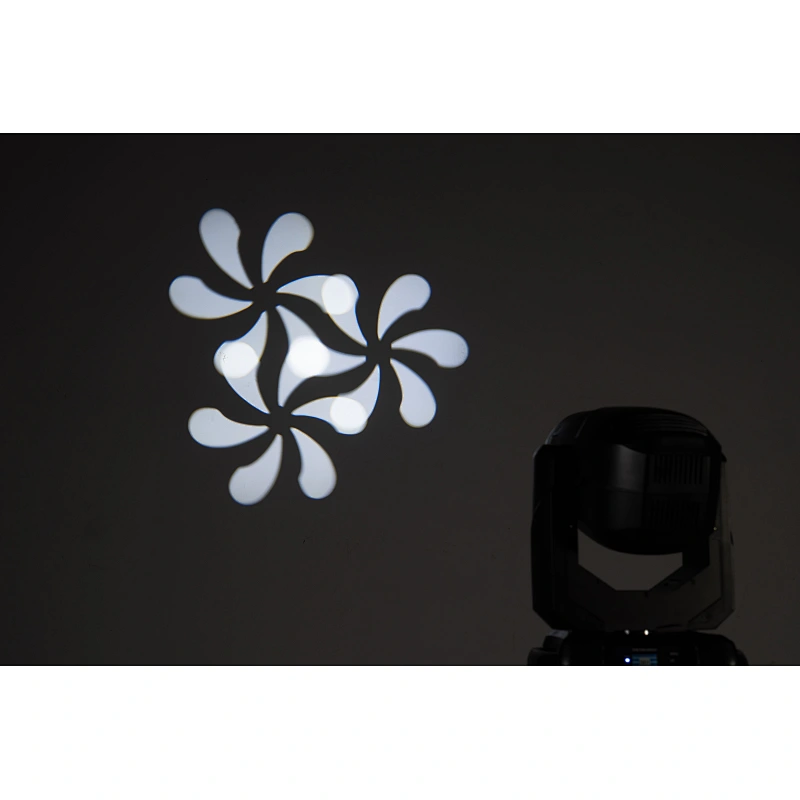

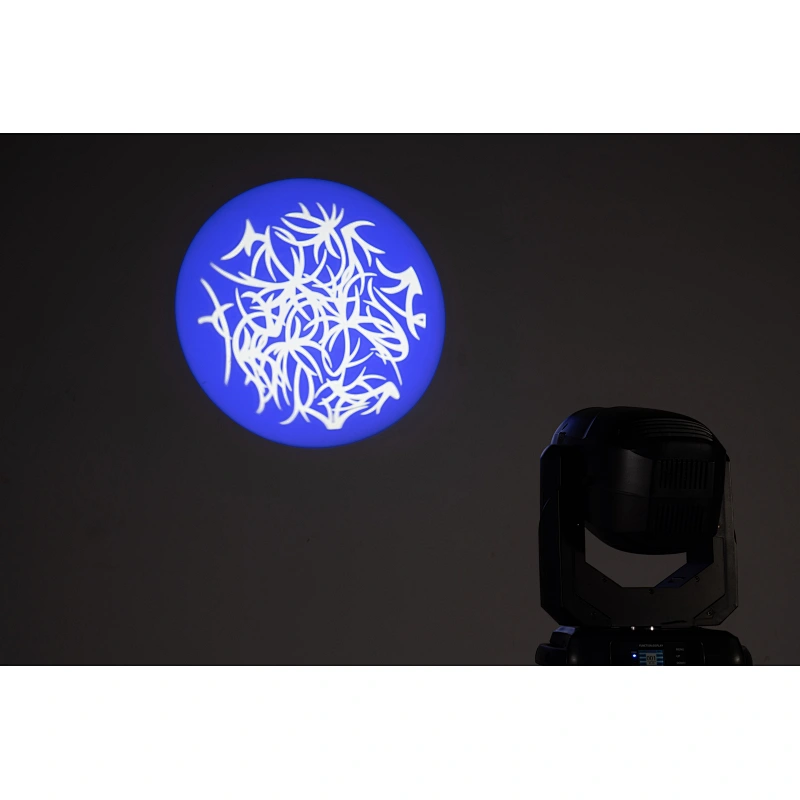

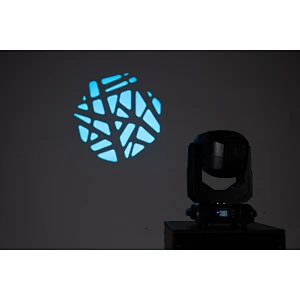

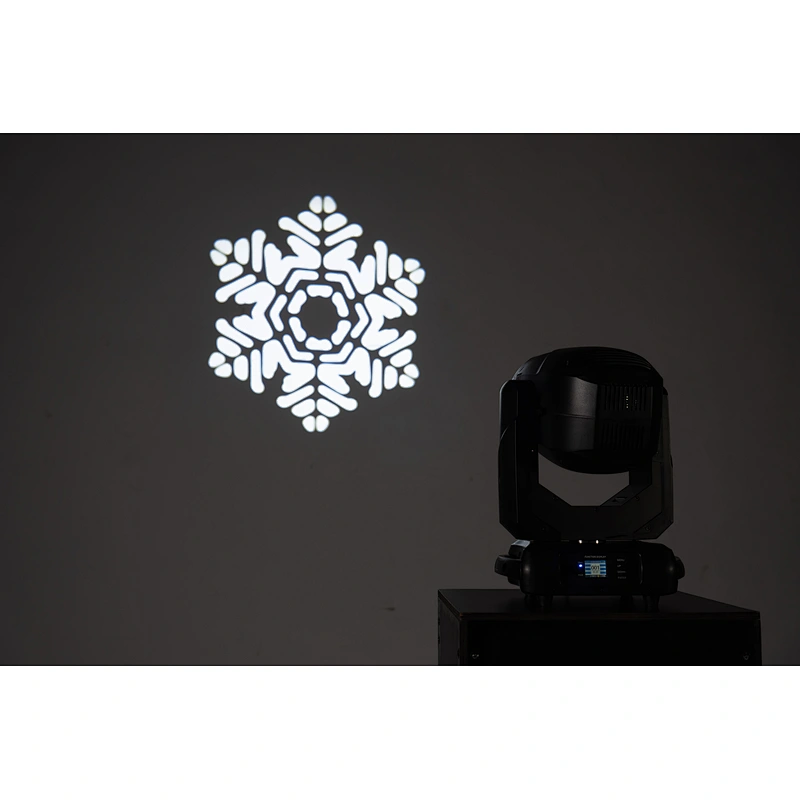

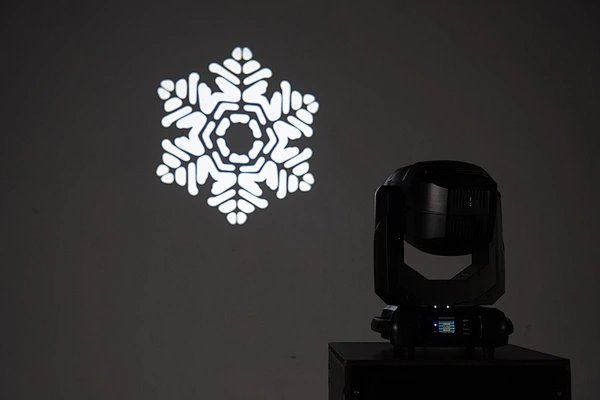

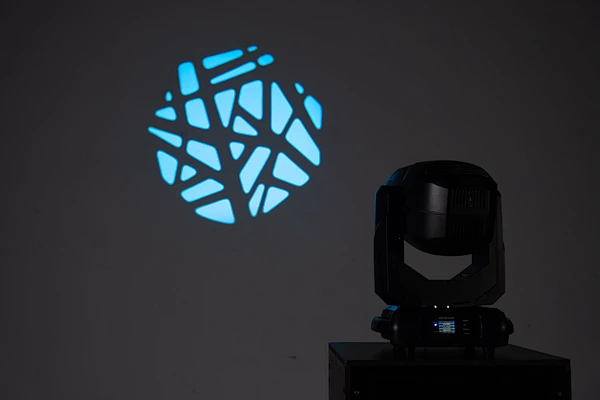

• 1 Gobo wheel with 9 fixed gobo+open

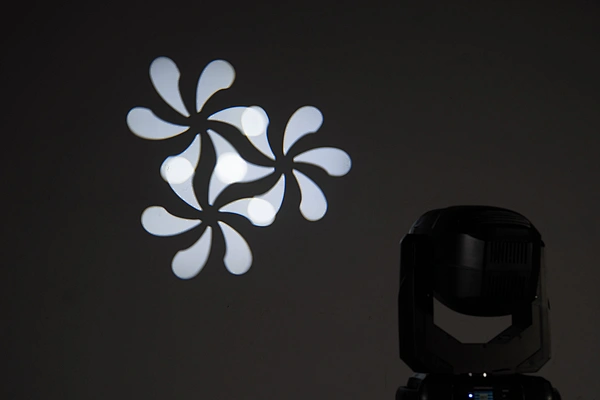

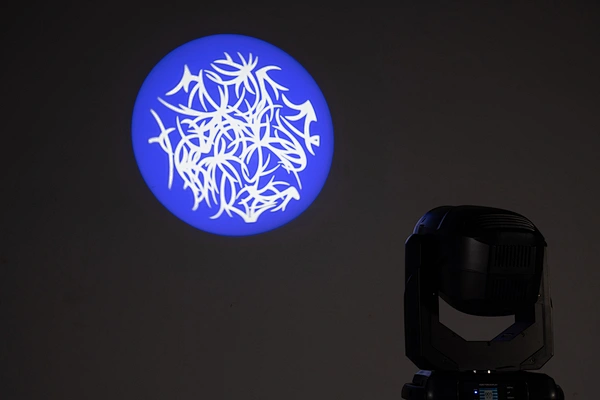

• 1 Gobo wheel with 7 rotating gobo+open

• Focus, Zoom, Frost effect

• 3-facet prism

APPLICATION:

• Concerts

• Night clubs

• Large venues

• Big stages and events

PHYSICAL

Size: 334 x 270 x 509 mm (L x W x H)

Package(carton): 410 x 360 x 610 mm

Net Weight: 13.7 kg

DYNAMIC EFFECTS

Electronic shutter effect: Instant open and blackout

Electronic dimming: 0 - 100%, dimming curve selectable

Strobe effects

CONTROL AND PROGRAMMING

Control protocol: DMX, stand-alone

Setting and addressing: Control panel with LCD display

DMX channels: 18

Dimmer frequency: 1.2 - 20.0KHz

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

OPTICS

Light source: 200 Watt white LED

Color temperature: 6600K

Beam angle: 7°-20°

LED lifetime: 50,000 hours

CONSTRUCTION

Housing: Engineering plastic

Color: Black

Protection rating: IP20

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

CONNECTIONS

AC power in, thru: PowerCON in

DMX data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable
User manual
