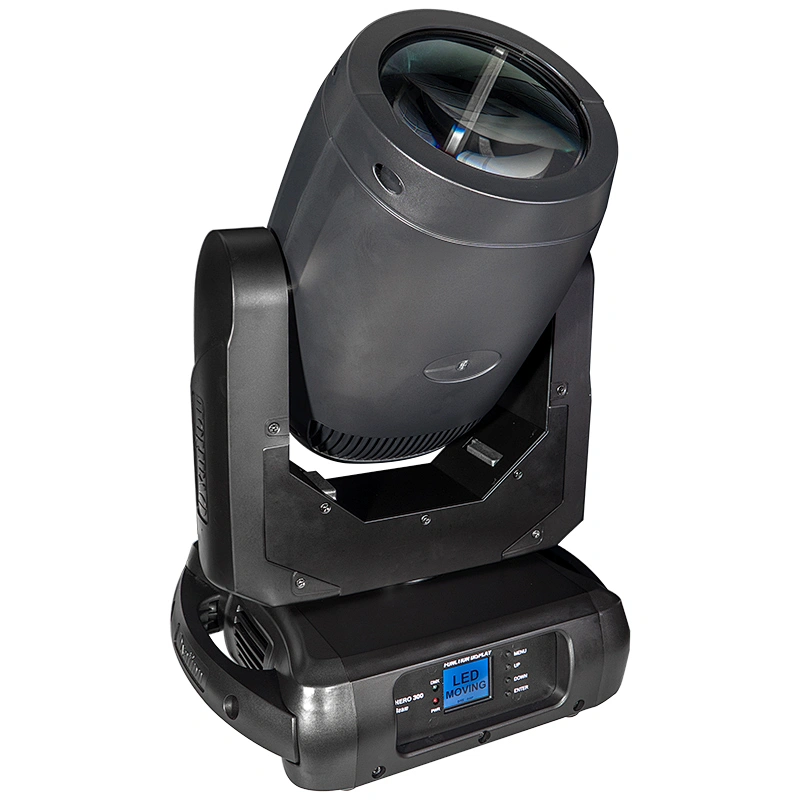

Hero 300 Super Beam

Hero 300 Super Beam is a 80W LED moving head beam light researched and developed basing on Hero 300 Beam. It uses more advanced optical system and projects brighter beam. It's a new generation of beam moving head light.

KEY FEATURES:

• 80W white LED

• 2 degree beam angle

• 1 Color wheel with 10 colors+open

• 1 Gobo wheel with 13 fixed gobo+open

• 1 effect color wheel with 7-color color wheel

• Small size body

• 8/16/24-facet prism

APPLICATION:

• Concerts

• Night clubs

• Venues

• Stages and events

PHYSICAL

Size: 333 x 269 x 468 mm (L x W x H)

Net Weight: 12.7 kg

DYNAMIC EFFECTS

Electronic shutter effect: Instant open and blackout

Electronic dimming: 0 - 100%, dimming curve selectable

Strobe effects

CONTROL AND PROGRAMMING

Control protocol: DMX, stand-alone

Setting and addressing: Control panel with LCD display

DMX channels: 16

Dimmer frequency: 1.2 - 20.0KHz

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

OPTICS

Light source: 100Watt white LED

Color temperature: 8800K

Beam angle: 2°

LED lifetime: 50,000 hours

CONSTRUCTION

Housing: Engineering plastic

Color: Black

Protection rating: IP20

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

CONNECTIONS

AC power in, thru: PowerCON in

DMX data in/out: 3-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable
User manual
