MHS60M

The MHS60M is a 60W powered mini LED moving head spot light. Features auto programs, sound activated, DMX 512 control, 7 colors with half color effect and 7 gobos with gobo shake.

MHS60M KEY FEATURES:

• 60W high output white LED

• Compact design

• 7 gobos, 7 colors + white light

• Half color effect

• DMX, Auto, Sound control

• Preset programs

• Manual focus

MHS60M APPLICATION:

• Concerts

• Night clubs

• Venues

• Stages and events

MHS60M PHYSICAL

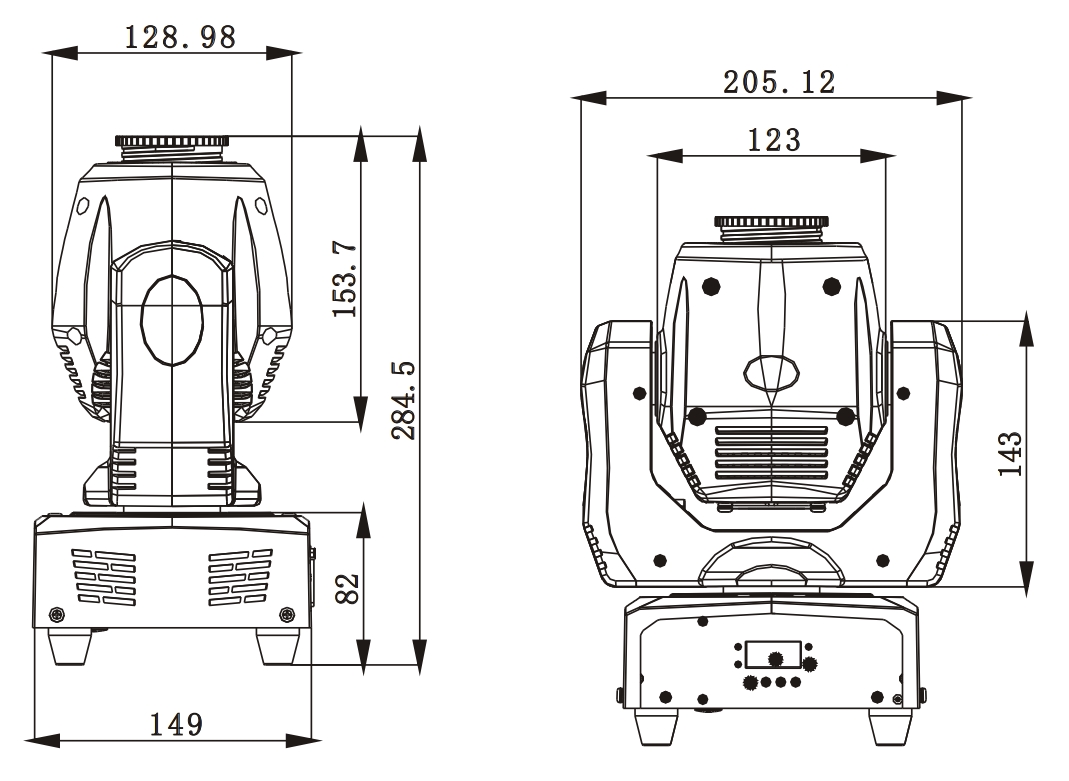

Size: 205 x 149 x 285 mm (L x W x H)

Net Weight: 3 kg

MHS60M DYNAMIC EFFECTS

Electronic shutter effect: Instant open and blackout

Electronic dimming: 0 - 100%, dimming curve selectable

Strobe effects

MHS60M CONTROL AND PROGRAMMING

Control protocol: DMX, stand-alone

Setting and addressing: Control panel with digital display

DMX channels: 9/11

Dimmer frequency: 1.2 - 20.0KHz

DMX compliance: USITT DMX512-A

MHS60M OPTICS

Light source: 60 Watt white LED

Beam angle: 12°

LED lifetime: 50,000 hours

MHS60M CONSTRUCTION

Housing: Engineering plastic

Color: Black

Protection rating: IP20

MHS60M INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

 CONNECTIONS

AC power in, thru: PowerCON in

DMX data in/out: 3-pin locking XLR

 ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

 THERMAL

Cooling: Heat sink

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

 INCLUDED ITEMS

Power input cable
Safety cable
User manual
