P19

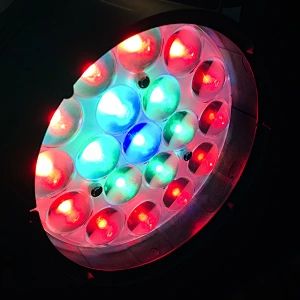

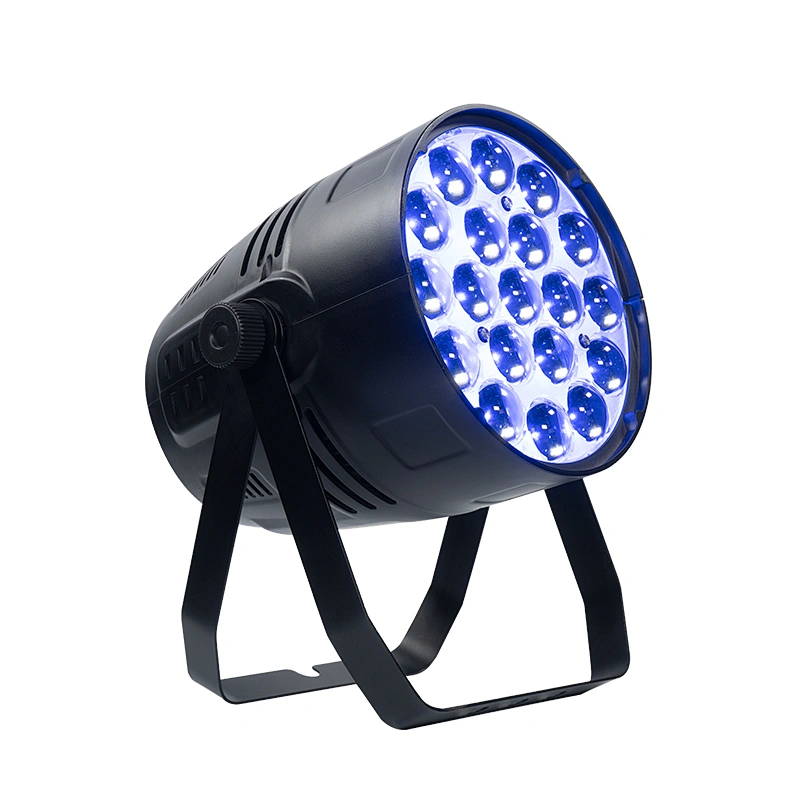

P19 is a 19x15W RGBW 4-in-1 high powered LED par light with zoom function. It features full aluminum housing, high brightness, 15-60 degree zoom, zone control of LED.

KEY FEATURES:

• 19x15W high power LEDs
• RGBW quad color
• 15-60° motorized zoom
•  Wash and beam effect
• 3 LED zones with individual control of each
• Master-slave operation
• Built-in color marcos
• Flicker free for TV and Film

APPLICATION:

• Stage
• Concerts
• Night club
• Wedding
• Events

PHYSICAL

Size: 260 x 205 x 280mm(10.2 x 8.1 x 11in)

Net Weight: 4.5kg(9.7lb)

CONTROL AND PROGRAMMING

Control protocol: DMX 512, Auto programs, Master-slave

DMX channels: 5/6/10/16/32

DMX compliance: USITT DMX512-A

OPTICS

Light source: 19x15W LEDs

LED lifetime: 50,000 hours

Zoom range:  15°-60° motorzied

CONSTRUCTION

Housing: Aluminum

Color: Black

Protection rating: IP20

INSTALLATION

Orientation: Any

Location: Indoor and outdoor use

Orientation: Any

CONNECTIONS

IP rated power cable

IP rated dataconnector

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

THERMAL

Cooling: Forced air

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C

INCLUDED ITEMS

Power input cable
Safety cable
User manual
