Panto Fresnel 200T
• 200W warm + 200W cold white LED

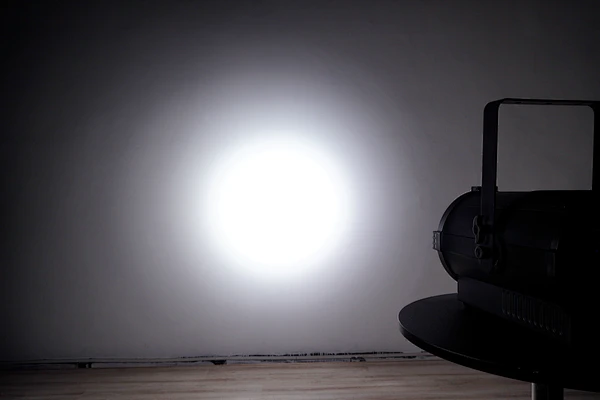

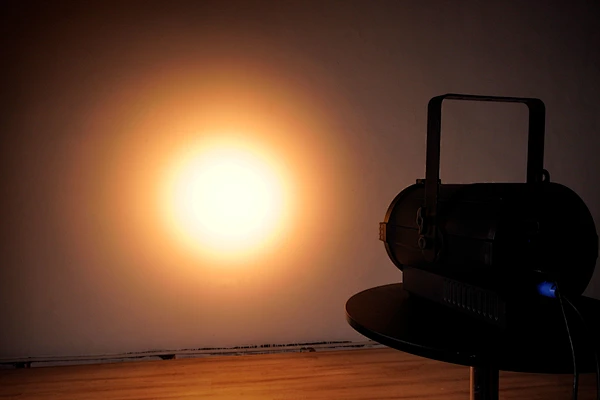

• 2800K - 6500K tunable
• 2 KW tungsten equivalent
• Average CRI 98, TLCI 98
• RDM, DMX control
• 4 dimmer curves selectable

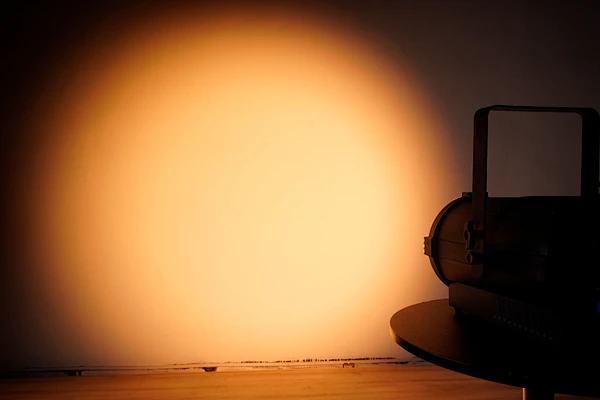

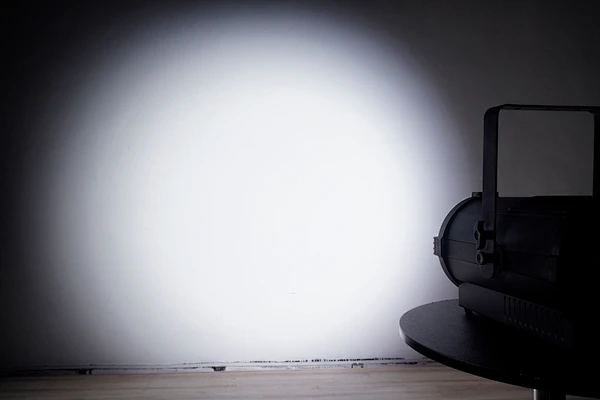

• 8°-60° motorized zoom
• 16 bit dimming
• Flicker free with selectable PWM
• Rotary, key, DMX control of dimmer and zoom
• Silent operation for studio and theater use
Product Specifications
Panto Fresnel 200T Physical
Size:523 x 314 x 502mm
Net Weight: 11 kg(barn door incl.)
Gross Weight: 13 kg
Panto Fresnel 200T Dynamic Effects
Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%, dimming curve selectable
Strobe effects
Panto Fresnel 200T Control and Programming
Control protocol: DMX, RDM
Setting and addressing: Control panel with LCD display
DMX channels: 3/6
Dimmer frequency: 1.2 - 24.0KHz
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Panto Fresnel 200T Optics
Light source: 200W WW + 200W CW
Color temperature: 2800K- 6500K adjustable
Lens tube: 8° - 60° motorized zoom
LED lifetime: 50,000 hours
Panto Fresnel 200T Photometric Data
CRI (Color Rendering Index) : >97
CQS (Color Quality Scale): >94
TM-30 Rf (IES TM-30-15 Fidelity Index): >91
TM-30 Rg (IES TM-30-15 Gamut Index): >100
TLCI (Television Lighting Consistency Index): >98
Panto Fresnel 200T Construction
Housing: Aluminum
Color: Black
Protection rating: IP65
Panto Fresnel 200T Installation
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
Panto Fresnel 200T Connections
AC power in, thru: PowerCON in & out
DMX and RDM data in/out: 3-pin + 5-pin XLR in & out
Panto Fresnel 200T Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
Panto Fresnel 200T Thermal
Cooling: Heat sink + Intelligent fan(low noise)
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -5° C
Panto Fresnel 200T Included Items
Power input cable
Barndoor
Color frame
Safety cable
User manual
Panto Fresnel 200T Accessories Optional
Clamp
