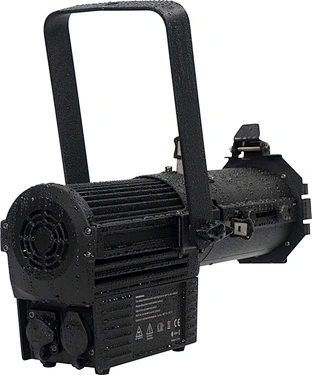

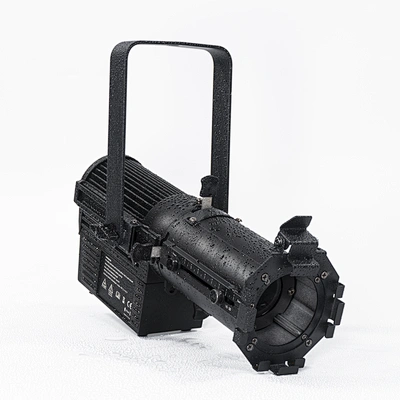

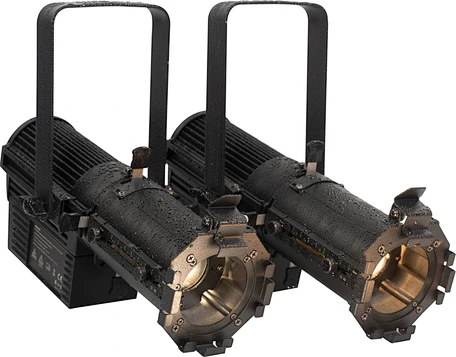

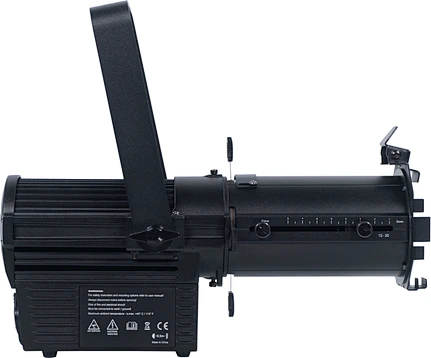

Panto Leko 60T
Key features:
• 60W WW + 60W CW constant output LED
• 2700K - 6000K adjustable
• High CRI over 92
• Die-casting aluminum housing, fan-free
• 15° - 30° and 25° - 50° zoom lens optional
• Smooth dimming, flicker free
• Compact body, easy to set up
• DMX control of dimmer
• RDM function available
• IP65, indoor or outdoor use
Product Specifications
Panto Leko 60T Physical
Size: 340 x 164 x 288mm (L x W x H)
Net Weight: 3 kg
Panto Leko 60T Dynamic Effects

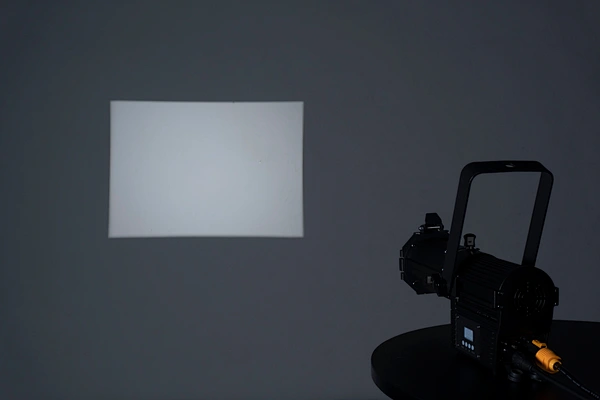

Electronic shutter effect: Instant open and blackout
Electronic dimming: 0 - 100%, dimming curve selectable
Strobe effects
Panto Leko 60T Control and Programming
Control protocol: DMX, RDM

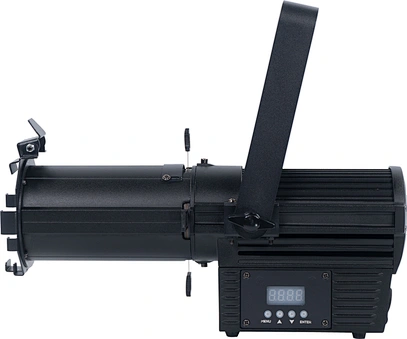

Setting and addressing: Control panel with digital display
DMX channels: 1/2/3/5
Dimmer frequency: 1.2 - 24.0KHz
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Panto Leko 60T Optics
Light source: 60W WW + 60W CW
Color temperature: 2700K - 6000K adjustable
Lens tube: 15°-30°/ 25°-50°zoom range
LED lifetime: 50,000 hours
Panto Leko 60T Photometric Data
Color Rendering Index: >92
Panto Leko 60T Construction
Housing: Die cast aluminum
Color: Black
Protection rating: IP65
Panto Leko 60T Gobos and color frame
Gobo size : support D size gobo
Panto Leko 60T Installation
Mounting: Adjustable bracket
Location: Indoor outdoor use
Orientation: Any

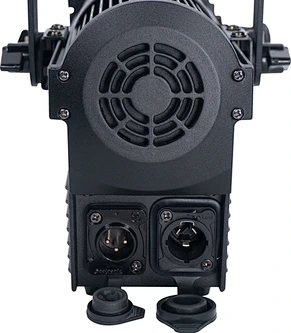

Panto Leko 60T Connections
AC power in, thru: PowerCON T1 in
DMX and RDM data in/out: 3-pin locking XLR
Panto Leko 60T Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
Panto Leko 60T Thermal
Cooling: Heat sink(no noise)
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -5° C
Panto Leko 60T Included Items
Power cable
Gobo Holder
Safety cable
User manual
Color frame
