Pioneer 200T Pro
Key features:
• 200Watt WW + 200Watt CW constant output
• 25+% brighter than the former Pioneer 200
• 2800K - 6500K tunable
• Average CRI 98, R9≥90, TLCI up to 98
• Soft and even wash effect
• 8° - 60° motorized zoom
• Smooth dimming
• Dimmer frequency 1.2 - 24.0KHz
• DMX, RDM control
• Dimmer modes selectable
• Intelligent fan, silent operation

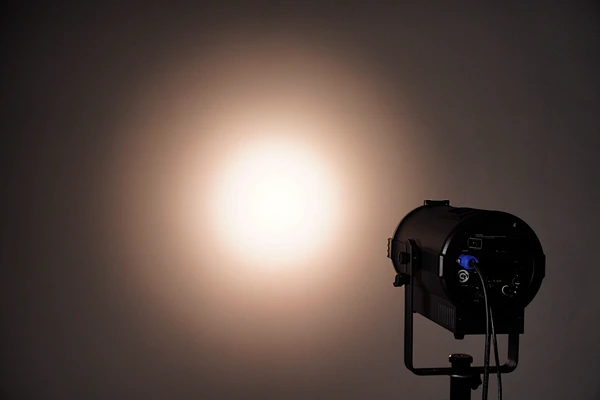

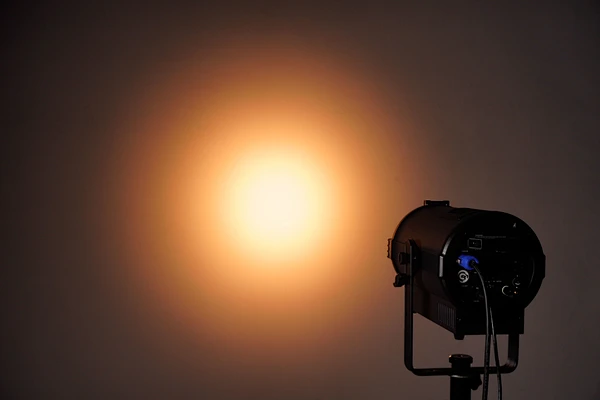

The Pioneer 200T PRO is a tunable white LED fresnel with zoom function. Color temperature 2800K - 6500K. The RDM-DMX compliant, degree motorized zoom along with it’s superior CRI make this fixture a good replacement for the traditional fresnels. Pioneer 200 Pro is both smaller and brighter than Pioneer 200 Zoom.
PHYSICAL
Size: 377 x 282x 270mm
Net Weight: 6.6kg
CONTROL AND PROGRAMMING
Control protocol: DMX, RDM
DMX channels: 3/6CH
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
OPTICS
Light source: 200W WW + 200W COB LED
Color temperature: 2800K - 6500K
Zoom range: 8° - 60°motorized zoom
LED lifetime: 50,000 hours
CONSTRUCTION
Housing: Aluminum
Color: Black
Protection rating: IP20
INSTALLATION
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
CONNECTIONS
AC power in, thru: PowerCon in & thru
DMX and RDM data in/out: 3+5-pin locking XLR
ELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power consumption: 200W WW + 200W CW
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
THERMAL
Cooling: Heat sink, intelligent fan
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -5° C
INCLUDED ITEMS
Power input cable
Safety cable
User manual
Color frame
Barndoor
ACCESSORIES OPTIONAL
Clamp
