Pioneer 350C Zoom
KEY FEATURES
• 350W LED
• RGBALC 6 color mixing

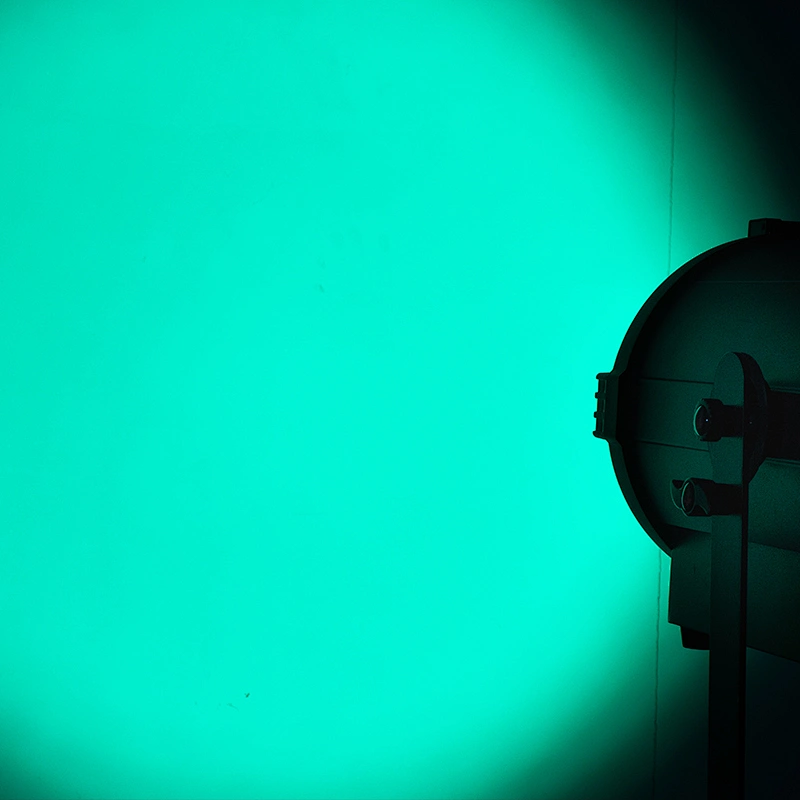

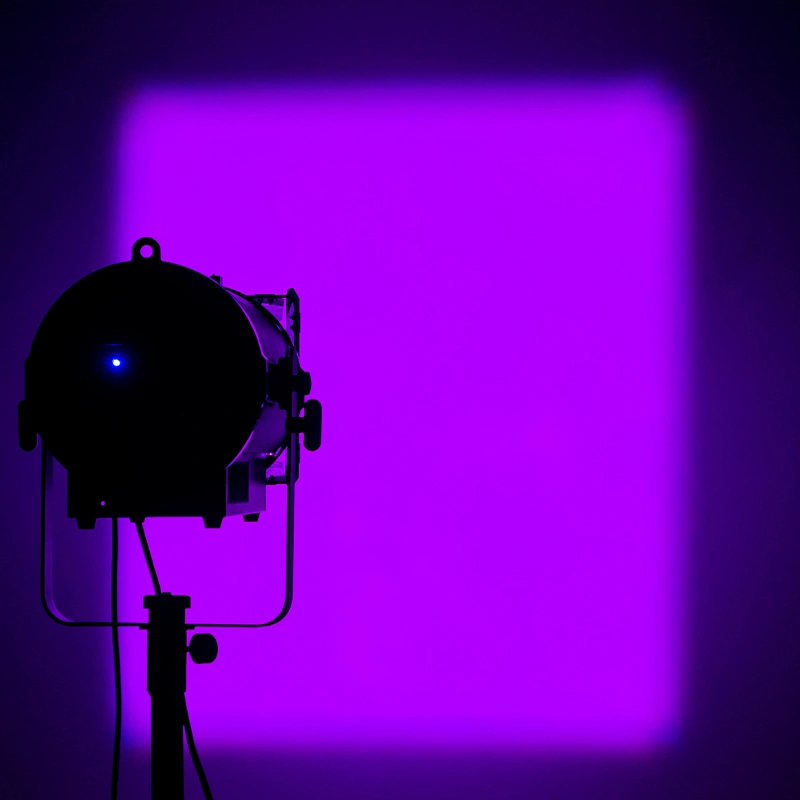

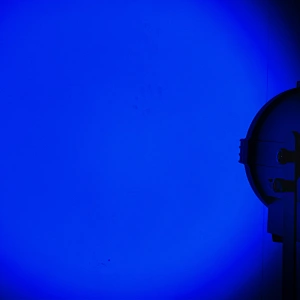

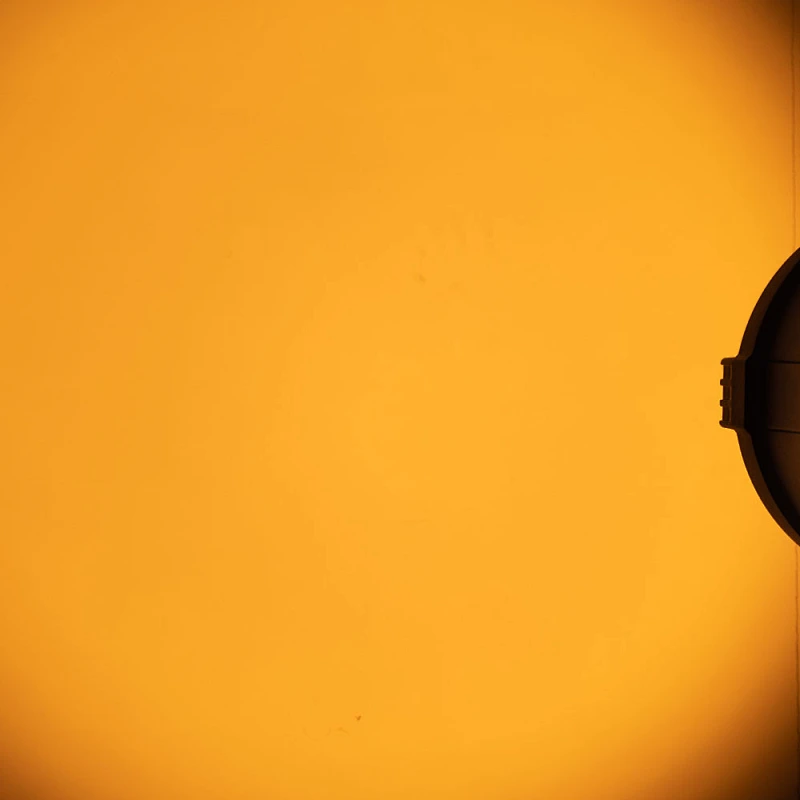

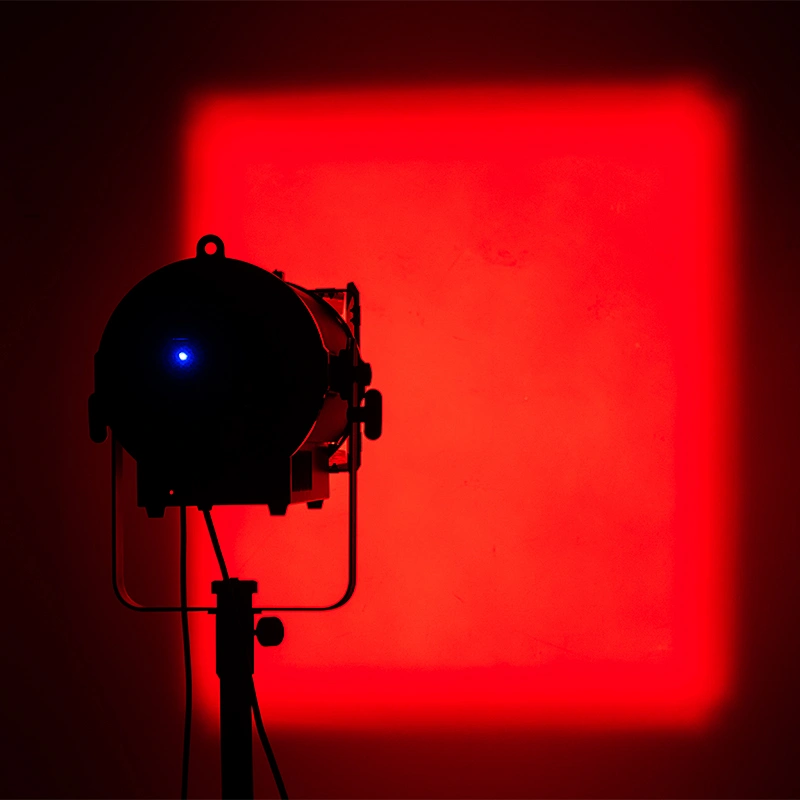

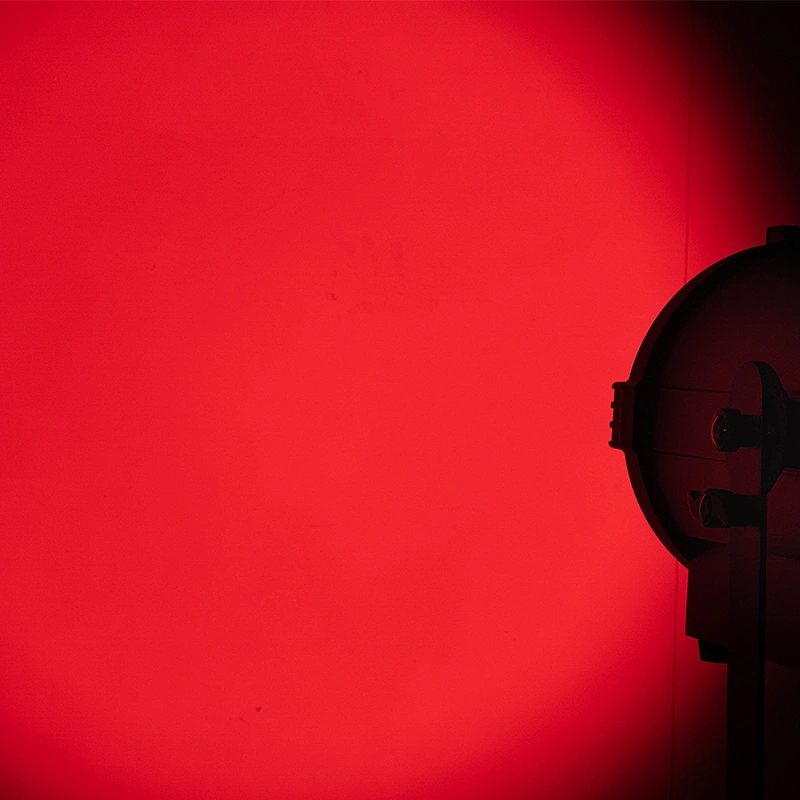

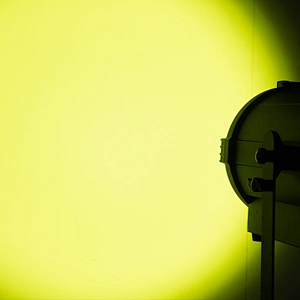

• Soft and even wash effect
• High CRI of 95
• 20 - 55° motorized zoom
• 16 bit dimming via DMX
• Video flicker free
• DMX, RDM control
• Dimmer modes selectable
• Intelligent temperature control

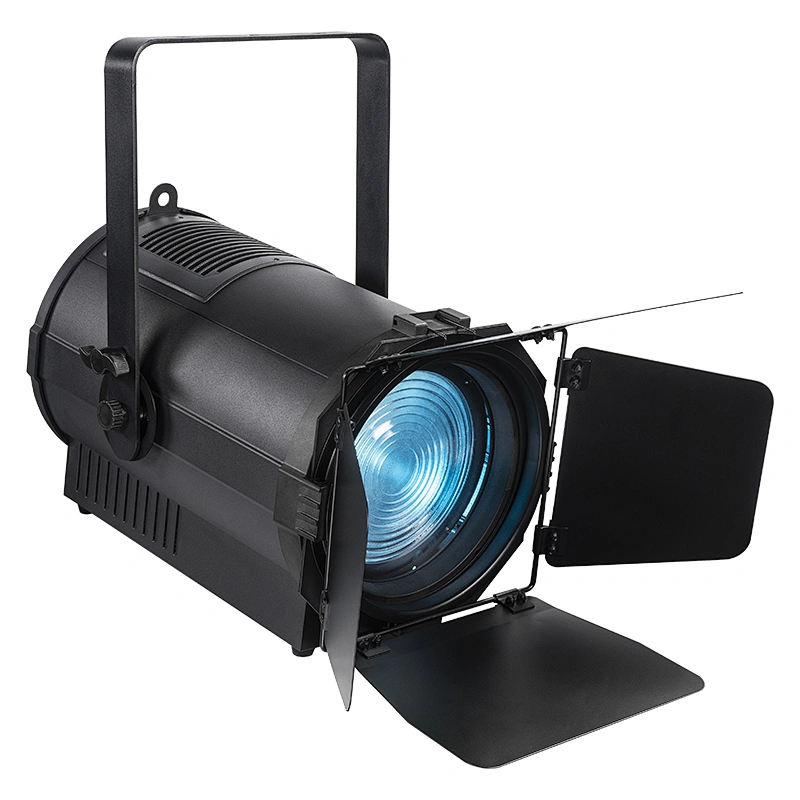

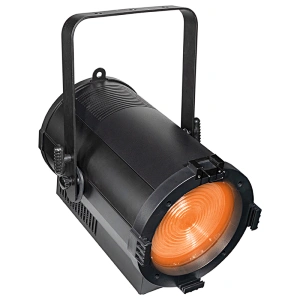

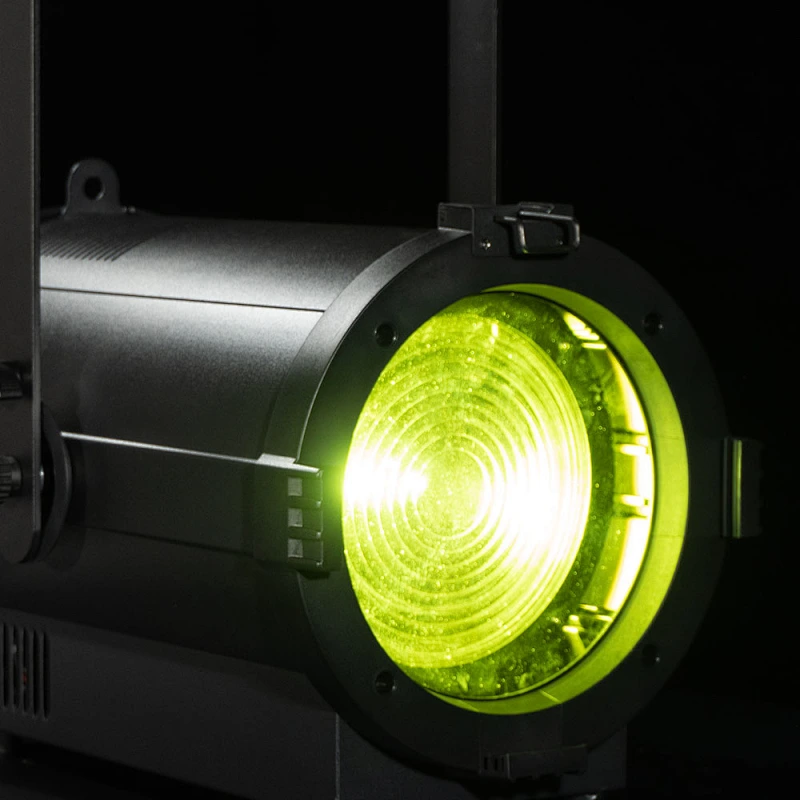

The Pioneer 350C Zoom is a 350W RGBALC powered LED fresnel with zoom function. The RDM-DMX compliant, 20°- 55° motorized zoom along with it’s superior color mixing make this fixture a good replacement for the traditional fresnels.
KEY FEATURES
•350W LED
•RGBALC 6 color mixing
•Soft and even wash effect
•High CRI of 95
•20 - 55° motorized zoom
•16 bit dimming via DMX
•Video flicker free
•DMX, RDM control
•Dimmer modes selectable
•Intelligent temperature control
APPLICATION
• Theatre, church
• Film shooting
• Museum
• Stage wash
PHYSICAL
Size: 460 x 320 x 440mm
Net Weight: 11 kg(barn door incl.)
Gross Weight: 13 kg
CONTROL AND PROGRAMMING
Control protocol: DMX, RDM
DMX channels: 2/8/13
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
OPTICS
Light source: 350W COB LED
Color temperature: 3000K ~ 8000K
Zoom range: 20°-55° motorized zoom
LED lifetime: 50,000 hours
CONSTRUCTION
Housing: Aluminum
Color: Black
Protection rating: IP20
INSTALLATION
Mounting: Adjustable bracket
Location: Indoor use only
Orientation: Any
CONNECTIONS
AC power in, thru: IP rate power cable in
DMX and RDM data in/out: 3+5-pin locking XLR
ELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
THERMAL
Cooling: Heat sink( no noise)
Maximum ambient temperature (Ta max.): 45° C
Minimum ambient temperature (Ta min.): -5° C
INCLUDED ITEMS
Power input cable
Safety cable
User manual
Color frame
Barndoor
ACCESSORIES OPTIONAL
Clamp
