Pop Par 100 UV
Pop Par 100 UV
Pop Par 100 UV
Pop Par 100 UV

Pop Par 100 UV

Model NO.:
63315
Delivery:
EXW,FOB
Minimum order quantity:
1 piece
Supply Ability:
500 piece / Week
Country of Origin:
CHINA
Stock Time:
10 Days

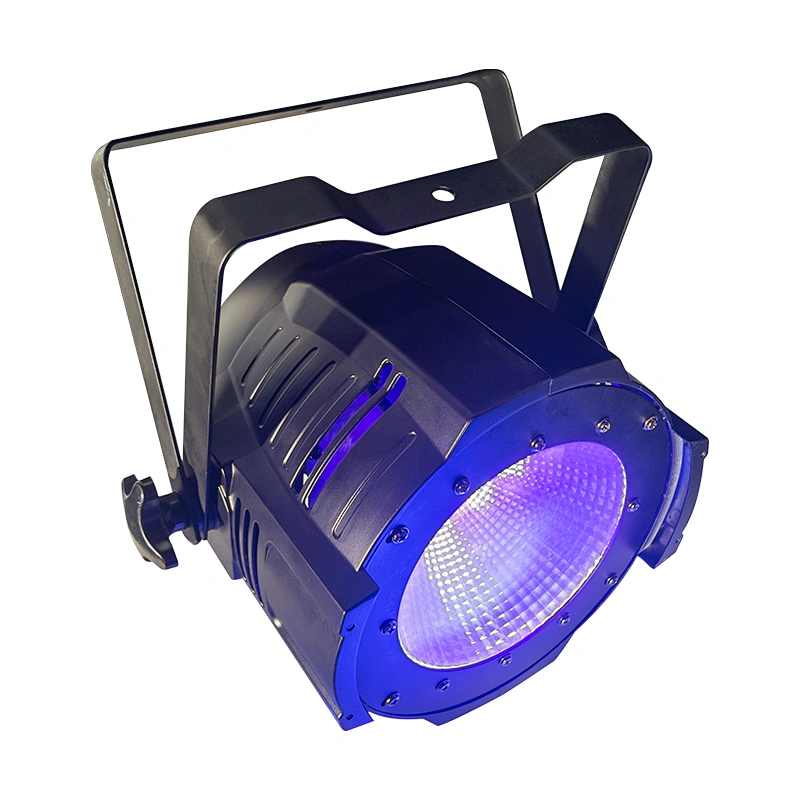

Pop Par 100 UV is a 100W UV par light, with widely Beam angle 100°, Aluminum housing.

KEY FEATURES

• 100W UV par light

• Dual bracket

• Master-slave operation

•  Aluminum housing

• Anti-corrosive coating

• Overheat protection

• RDM function

APPLICATION

• clubs and bars, and for themed events like Halloween.


PHYSICAL

Size: 320 x 315 x 220mm

Net Weight: 3kg

Gross Weight: 5kg


CONTROL AND PROGRAMMING

Control protocol: DMX, RDM

DMX channels: 1/2/3/4

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20


OPTICS

Light source: 100W COB LED

Color temperature: UV

LED lifetime: 50,000 hours


CONSTRUCTION

Housing: Aluminum

Color: Black

Protection rating: IP20


INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any


CONNECTIONS

AC power in, thru: IP rate power cable in

DMX and RDM data in/out: 3-pin locking XLR


ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.


THERMAL

Cooling: Heat sink( no noise)

Maximum ambient temperature (Ta max.): 45° C

Minimum ambient temperature (Ta min.): -5° C


INCLUDED ITEMS

Power input cable
Safety cable
User manual




ACCESSORIES OPTIONAL

Clamp
