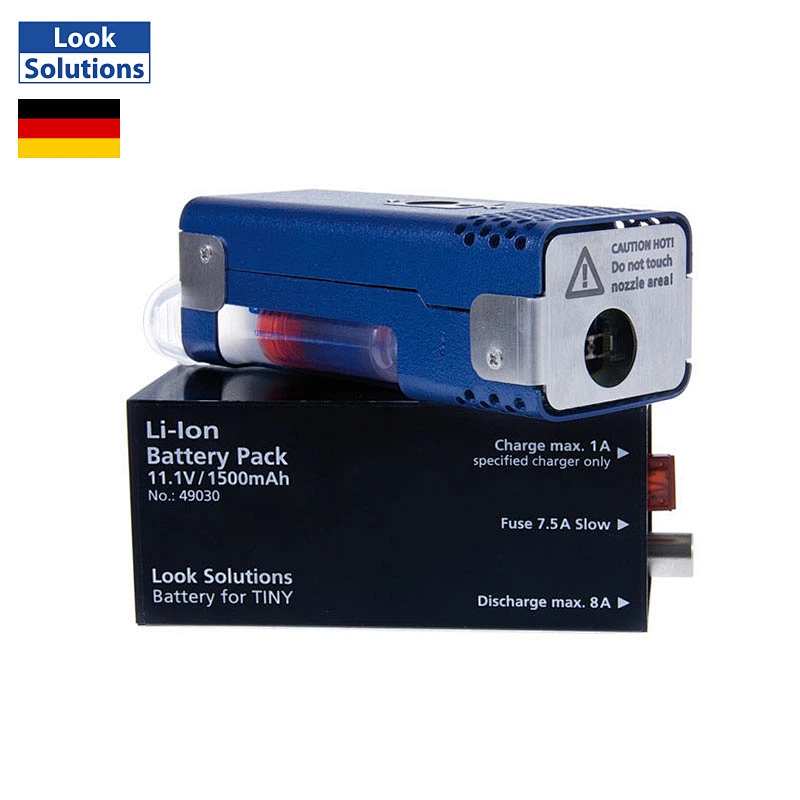

This fog generator is called tiny, and its dimensions truly are tiny. In a small package (L = 9.8, W = 4.4, H = 3.4 cm) technology of outstanding performance has been realised.
TINY is the English word for ‘tiny’ - and the dimensions of this battery-operated fog generator really are tiny. In the smallest of spaces, we have succeeded in installing technology that is impressive in its performance.
Small dimensions and low weight, making it easy to install in costumes and props
Battery is only charged when the fogging process is triggered - therefore the machine remains operational for a long time
Heat-up time less than 1 second
Continuous, even output
Fogging time freely programmable
Continuous fogging possible
Triggered by button in the housing, cable remote and
optionally possible via radio remote control, DMX converter and timer
Control of several TINY FX with one radio remote control
Low fluid consumption (2.3 ml/min. with continuous fog)
Supplied in a case for transport and storage
TINY is the English word for ‘tiny’ - and the dimensions of this battery-operated fog generator really are tiny. In the smallest of spaces, we have succeeded in installing technology that is impressive in its performance.
Small dimensions and low weight, making it easy to install in costumes and props
Battery is only charged when the fogging process is triggered - therefore the machine remains operational for a long time
Heat-up time less than 1 second
Continuous, even output
Fogging time freely programmable
Continuous fogging possible
Triggered by button in the housing, cable remote and
optionally possible via radio remote control, DMX converter and timer
Control of several TINY FX with one radio remote control
Low fluid consumption (2.3 ml/min. with continuous fog)
Supplied in a case for transport and storage
Quantity:
| Advantages |
| • Very small dimensions |
| • Battery supplies energy only when necessary |
| • Warm up time less than 1 sec. |
| • Continuous output |
| • Fogging time programmable |
| • Minimal fluid consumption |
| • FTrigger directly at the machine, with cable remote and optionally with radio remote, DMX converter or Timer |
| • Carrying case |
| • Manufactured in Germany |

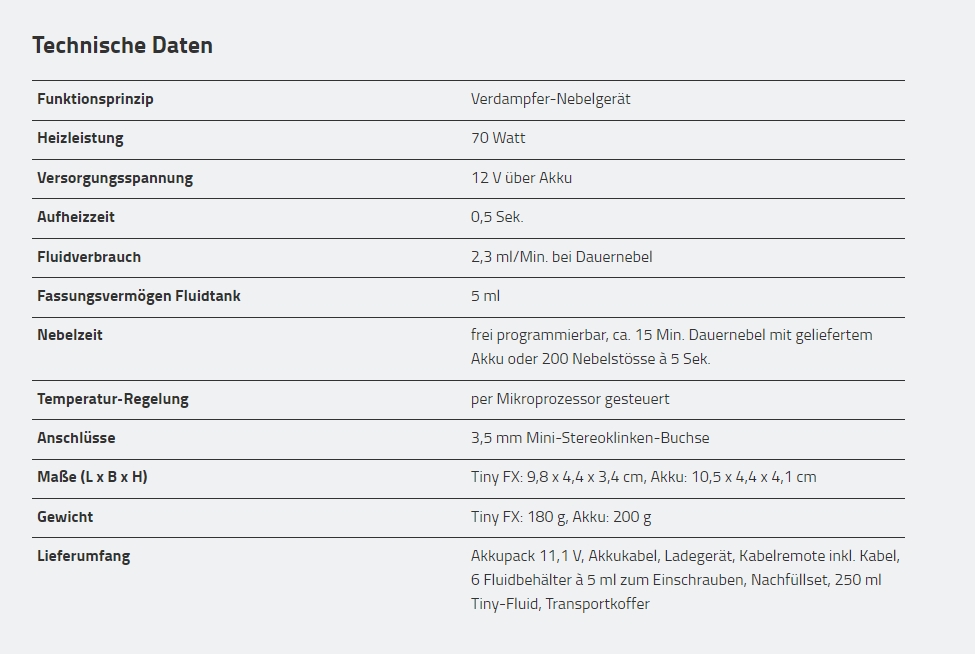

| Technical Data | |
| Procedure: | Vaporizing fog generator |
| Power requirement: | 70 Watt |
| Voltage : | 11.1 V battery |
| Warm up time: | < 1 Sec. |
| Fluid tank capacity: | 5 ml |
| Fluid consumption: | 2.3 ml/min. at cont. output |
| Fogging time: | Programmable |
| Continuous output with battery: | 10 min. |
| Control: | Start button in the lid, Cable remote, Radio remote (option), DMX 512 converter (option), Timer (option) |
| Temperature control: | Microprocessor |
| Dimensions TINY FX (LxWxH) | 9.8 x 4.4 x 3.4 cm |
| Weight TINY FX | 180 g |
| Dimensions battery pack (LxWxH) | 10.5 x 4.4 x 4.1 cm |
| Weight battery | 200 g |
